Center Panel Module Removal Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Pull the center panel module outward, detach clip A from the dashboard, and then remove the center panel module.

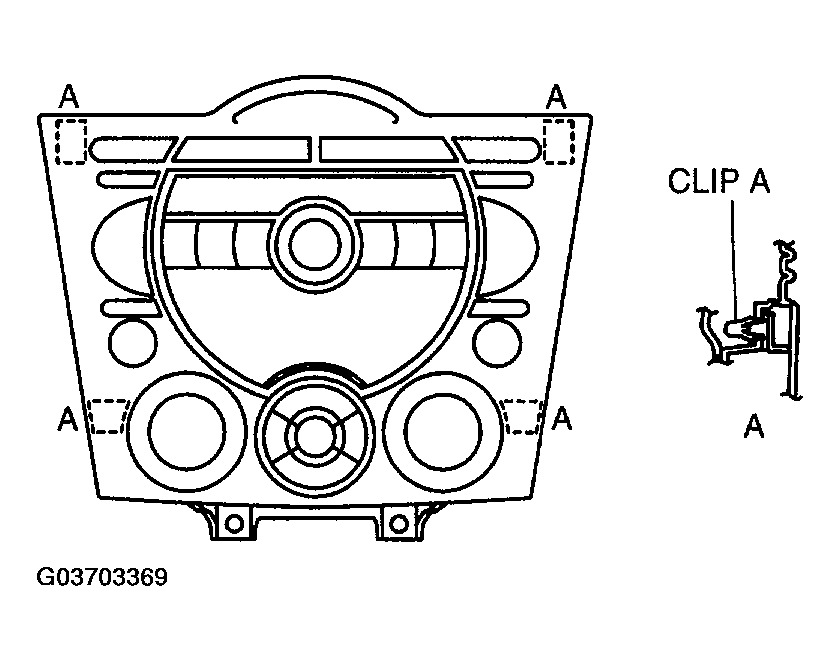

Fig 1: Removing Center Panel Module Clip
Courtesy of MAZDA MOTORS CORP.
