Center Panel Module Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)
Remove the ashtray panel. (See CONSOLE REMOVAL/INSTALLATION .)
Remove the ventilator grille (center). (See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

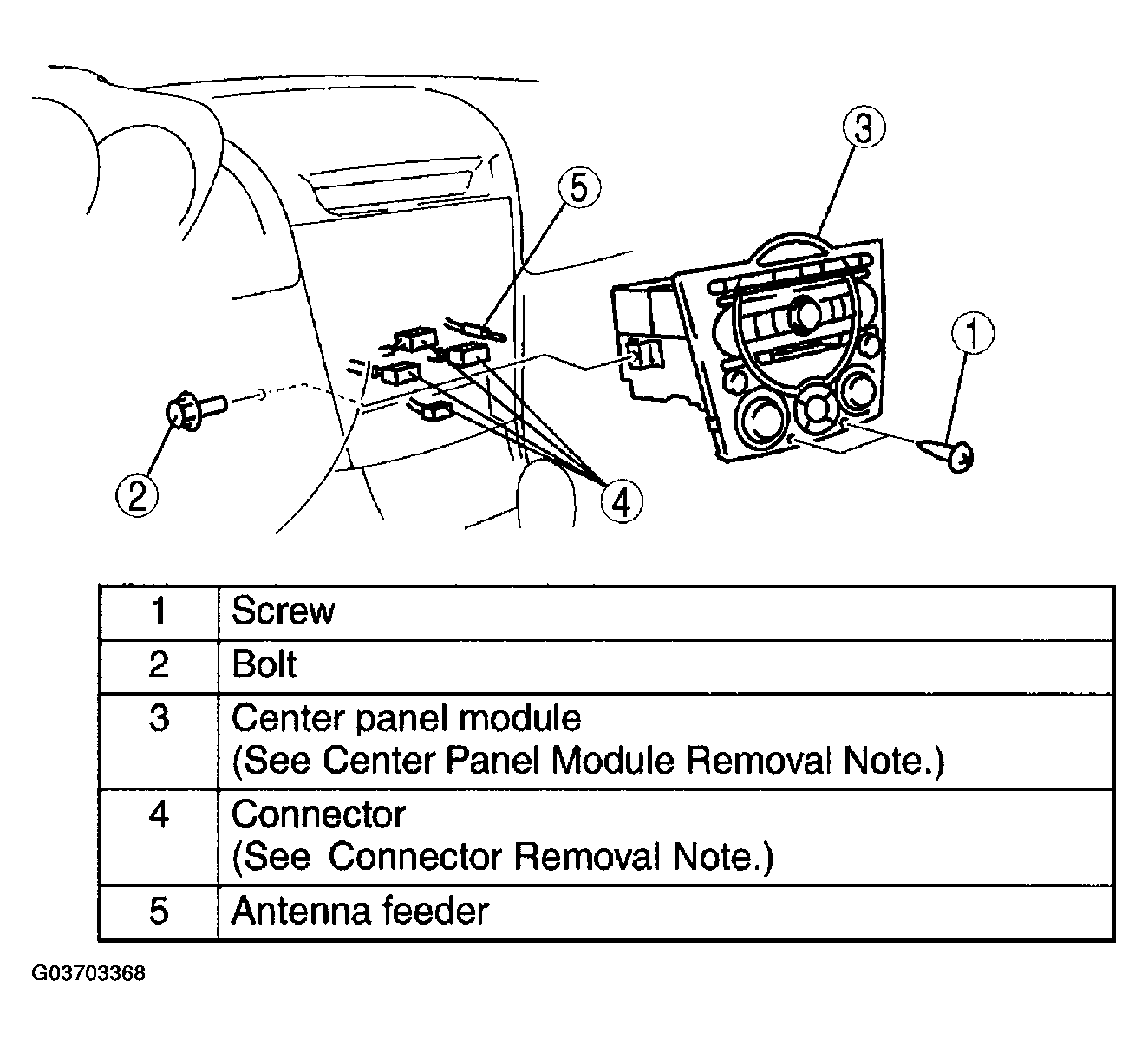

Fig 1: Removing Center Panel Module
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
CAUTION:
- When installing the center panel module, make sure that the wiring harness and antenna feeder are not caught between the unit and dashboard. If the wiring harness or the antenna feeder is caught between the unit and dashboard, it may cause malfunctions.
