Cruise Control Main Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cruise control main switch. (See CRUISE CONTROL MAIN SWITCH REMOVAL/INSTALLATION .)
Inspect for continuity between the cruise control main switch terminals using an ohmmeter.
- If not as specified, replace the cruise control main switch.

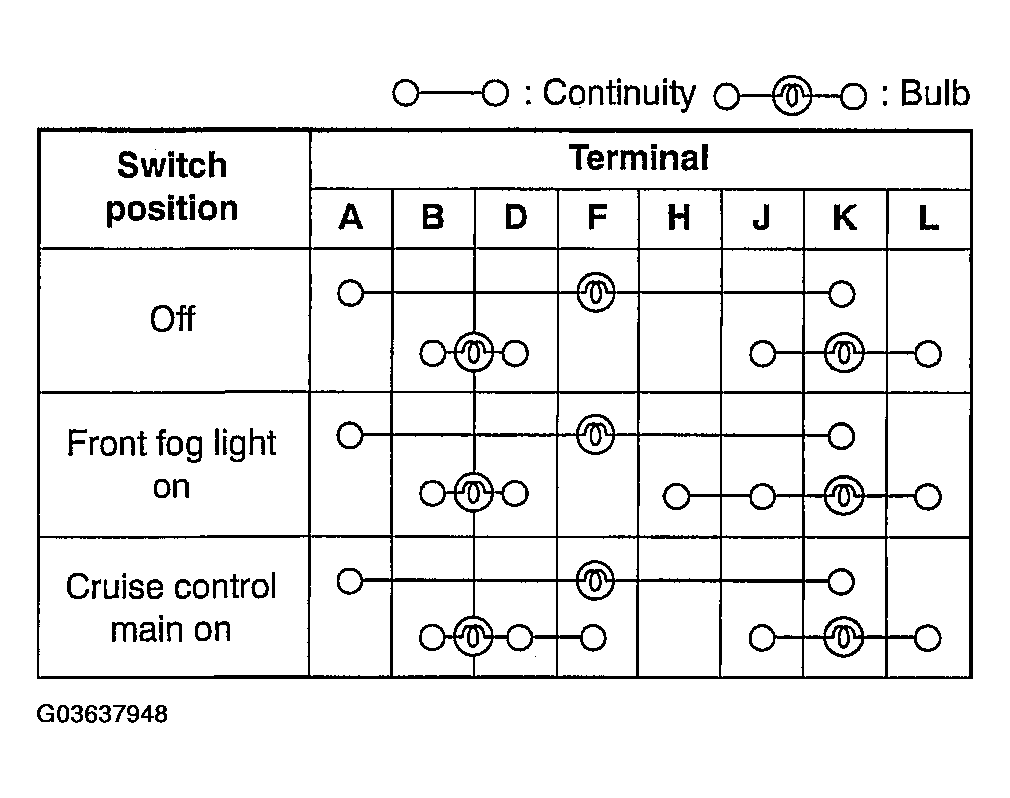

  Fig 1: Identifying Terminal
  Courtesy of MAZDA MOTORS CORP.

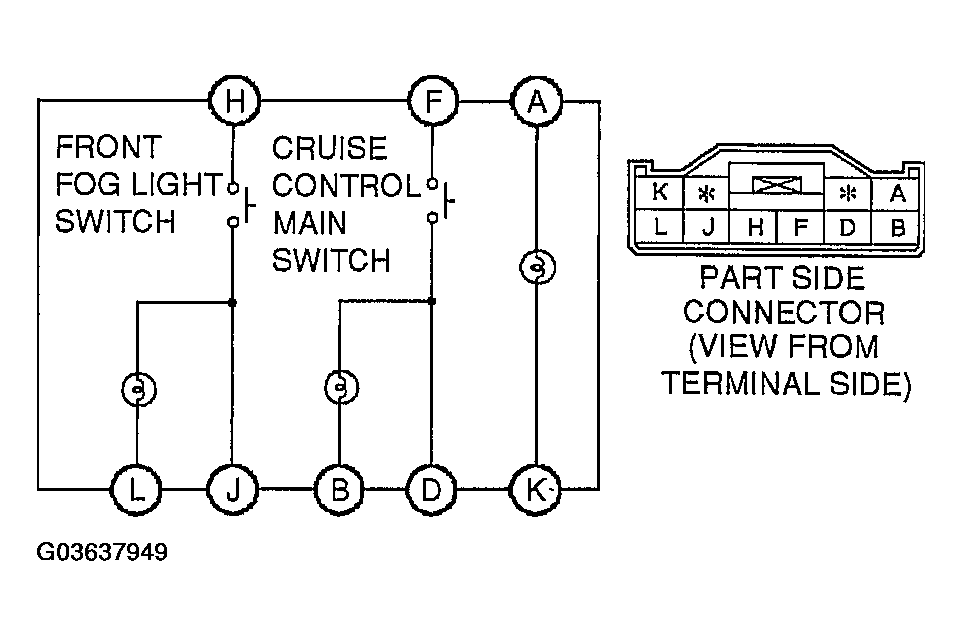

  Fig 2: Inspecting For Continuity Between Cruise Control Main Switch Terminals Using An Ohmmeter
  Courtesy of MAZDA MOTORS CORP.
