Cruise Control Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the combination switch. (See COMBINATION SWITCH REMOVAL/INSTALLATION .)
Measure the resistance between the cruise control switch terminals using an ohmmeter.
- If not as specified, replace the wiper lever.

  Fig 1: Cruise Control Switch Position Chart
  Courtesy of MAZDA MOTORS CORP.

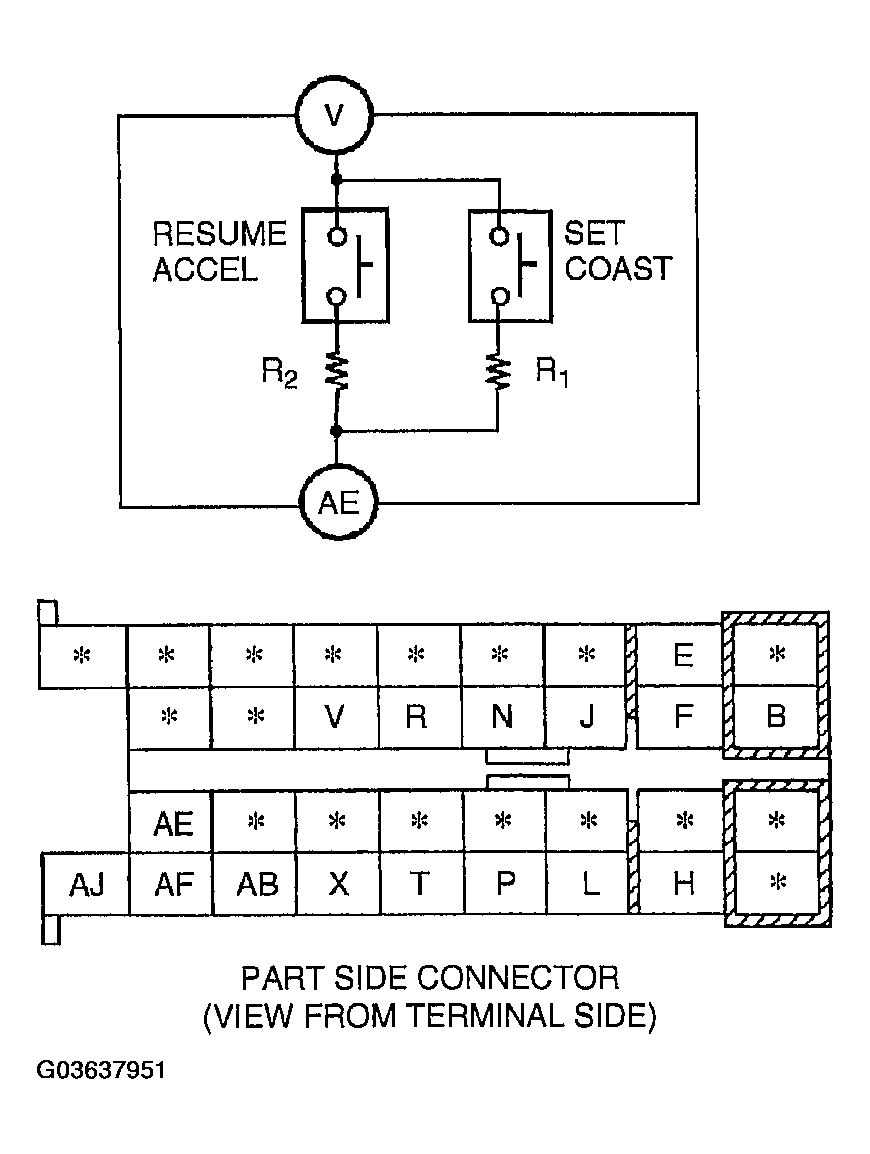

  Fig 2: Measuring Resistance Between Cruise Control Switch Terminals Using An Ohmmeter
  Courtesy of MAZDA MOTORS CORP.
