A/C Compressor Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Discharge the refrigerant from the system. (See REFRIGERANT CHARGING .)
Disconnect the negative battery cable.
Remove the under cover.
Remove the drive belt (P/S+A/C).
CAUTION:
- If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.
Remove in the order indicated in the table. Do not allow compressor oil to spill.

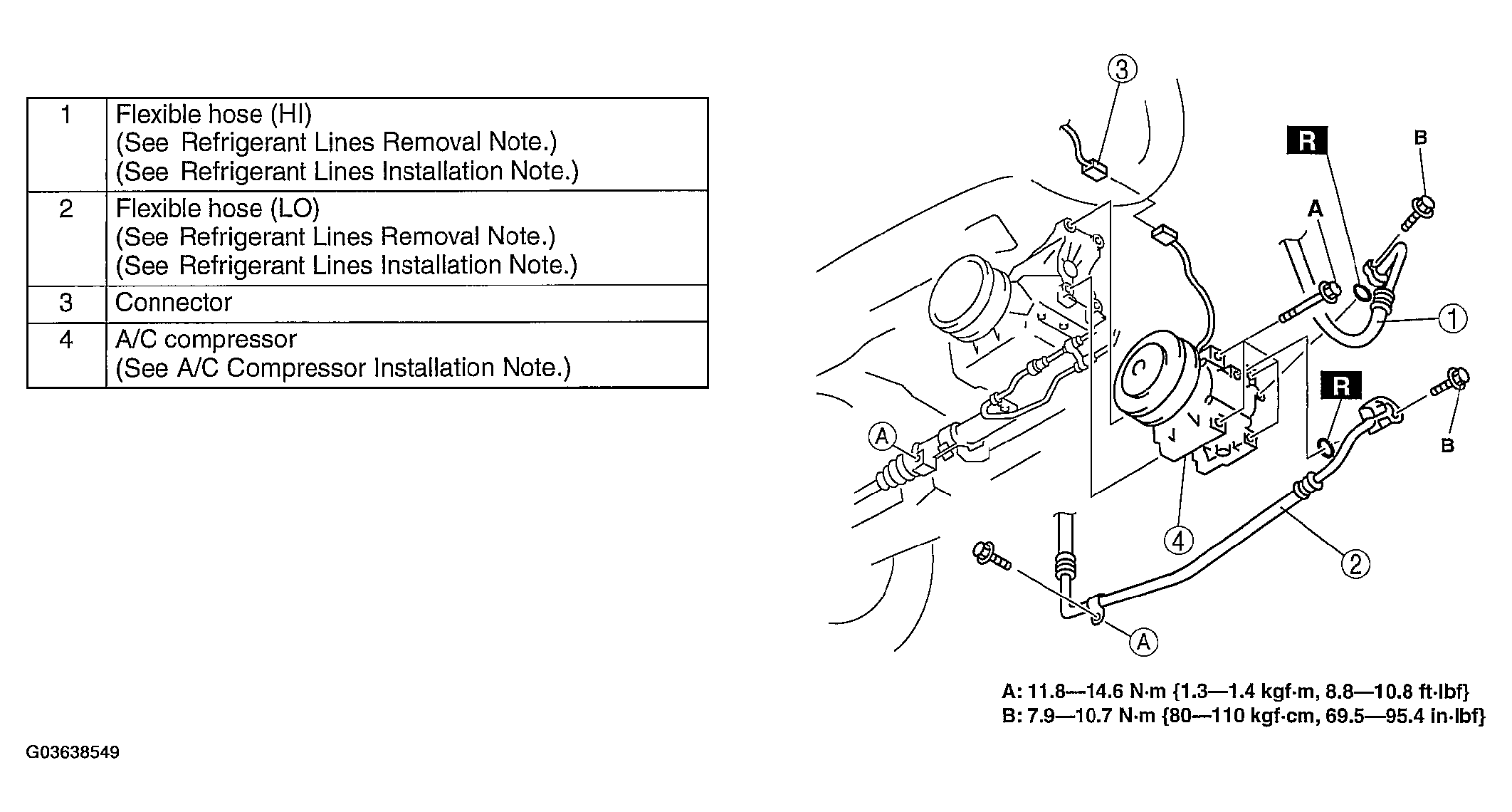

Fig 1: Removing A/C Compressor - With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
Adjust the drive belt (P/S+A/C). (See DRIVE BELT ADJUSTMENT .)
Perform refrigerant system performance test.
(See REFRIGERANT SYSTEM PERFORMANCE TEST .)
