Cooling Unit Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If moisture of foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.

Disassemble in the order indicated in the table.

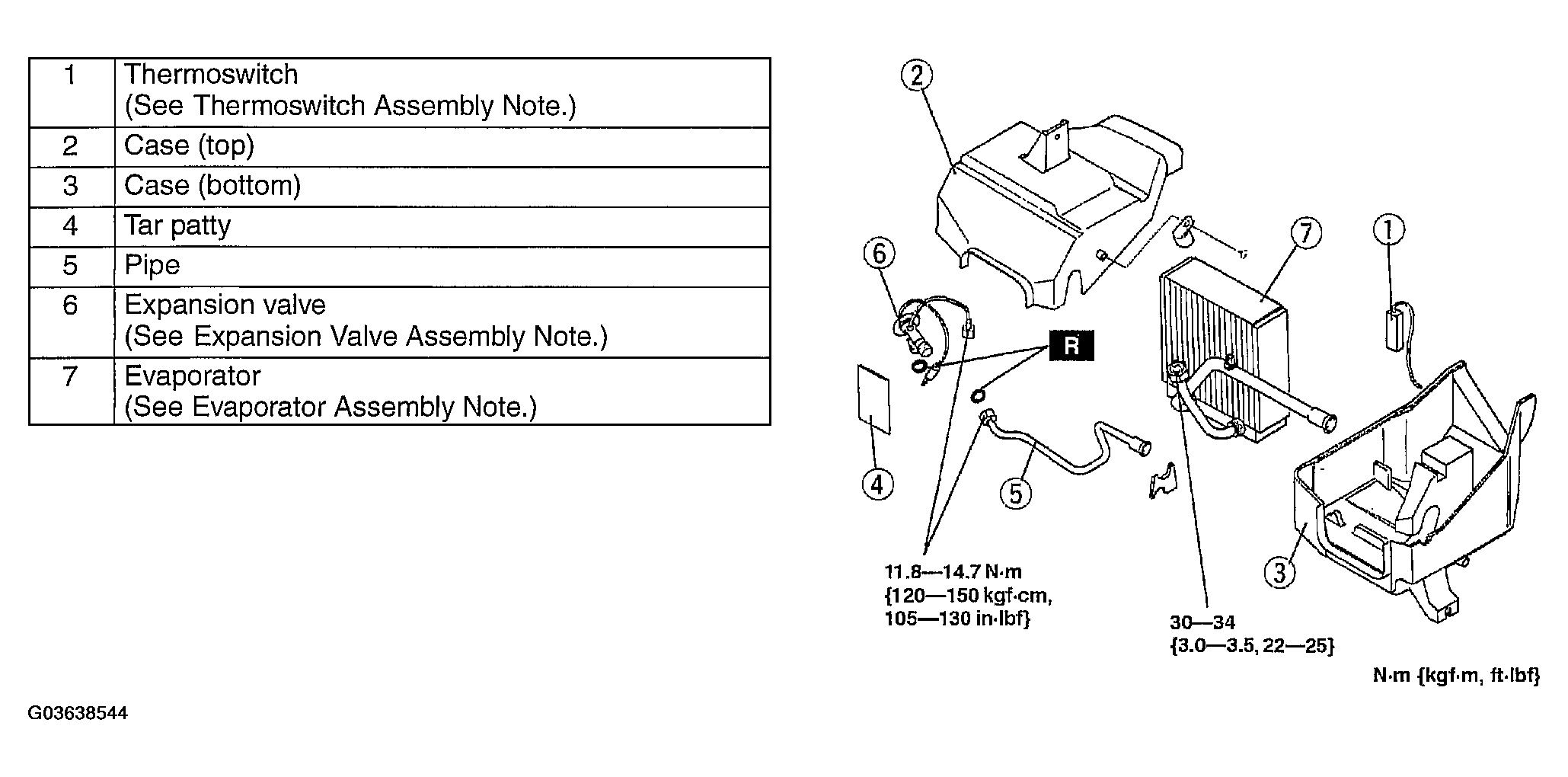

Fig 1: Disassembling Cooling Unit - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
