Coil Installation Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hook 1 to the steering lock.
  2. Install the hook 2 to the steering lock.

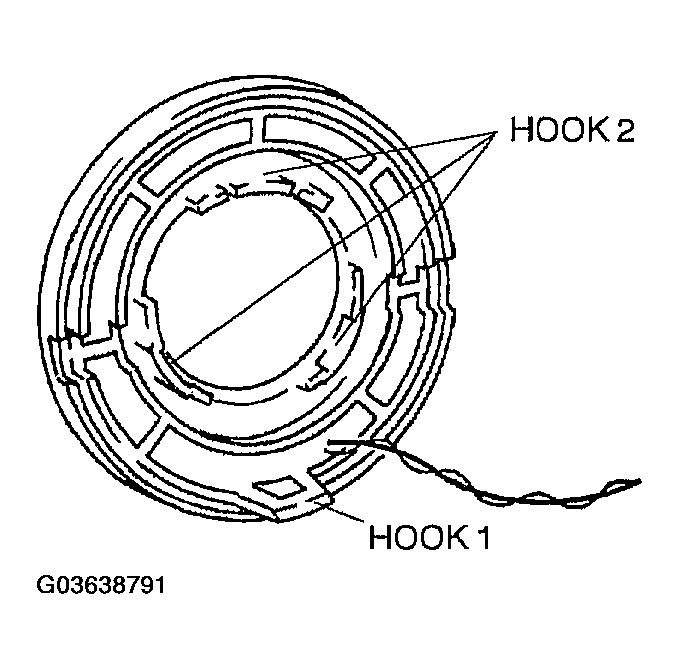

    Fig 1: Installing Hook 1 And 2
    G03638791Courtesy of MAZDA MOTORS CORP.
