Keyless Control Module Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Disconnect the keyless control module connector.
Remove the nut to remove the keyless control module and the bracket as a module.

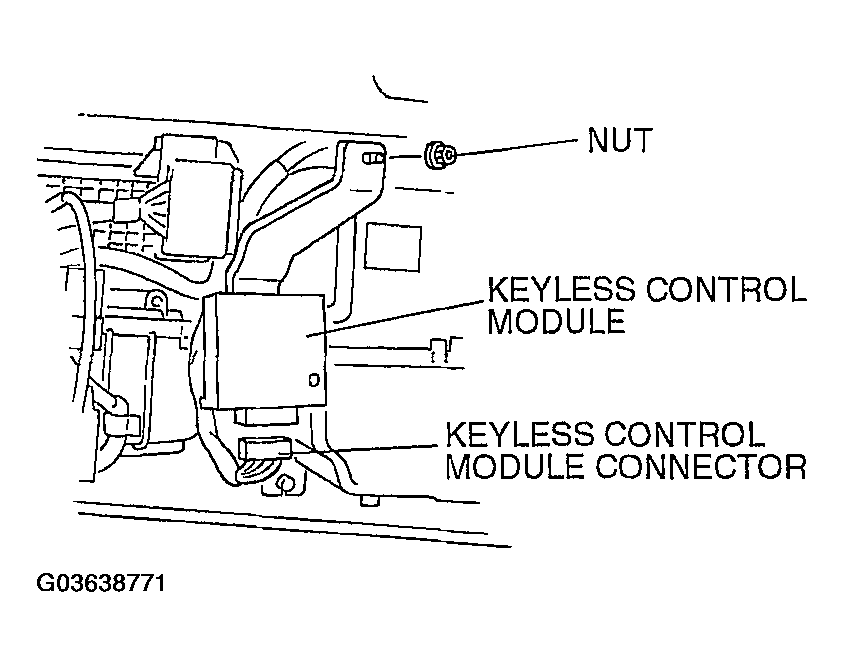

Fig 1: Removing Keyless Control Module
Courtesy of MAZDA MOTORS CORP.
Remove the screw.

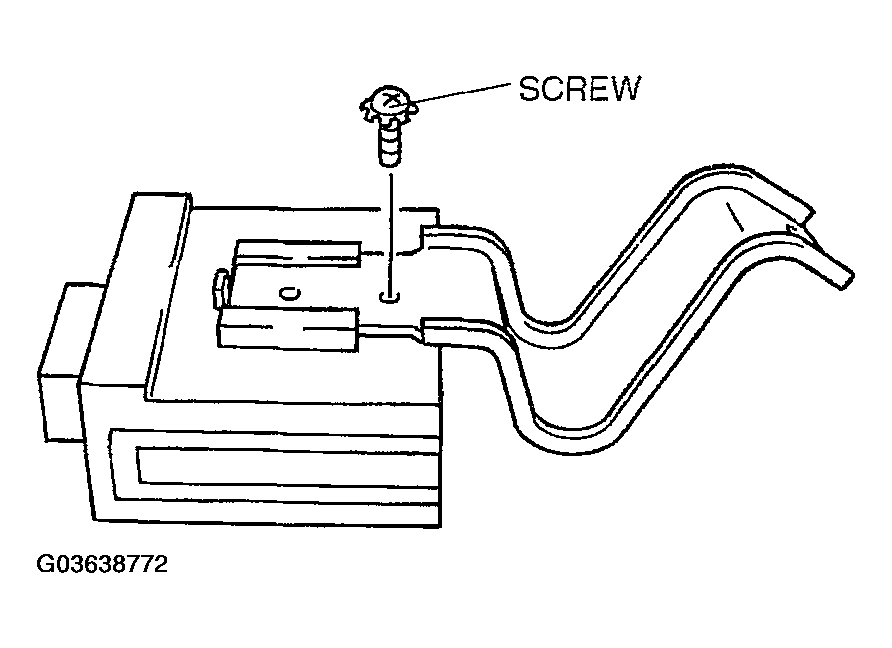

Fig 2: Removing Screw
Courtesy of MAZDA MOTORS CORP.
Remove the bracket.

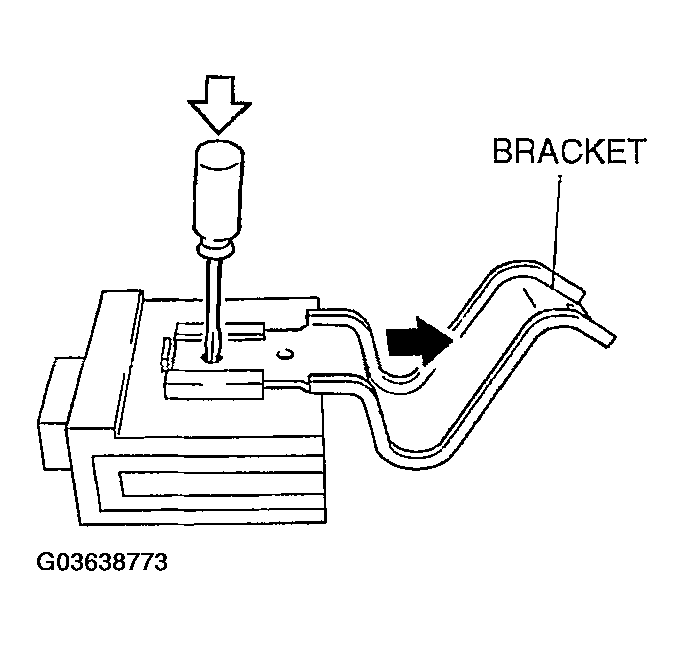

Fig 3: Removing Bracket
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
