Holder Assembly Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Apply grease to the U-gasket and O-ring.
Assemble the U-gasket, backup ring and O-ring into the holder.
Assemble the SST to the steering rack.

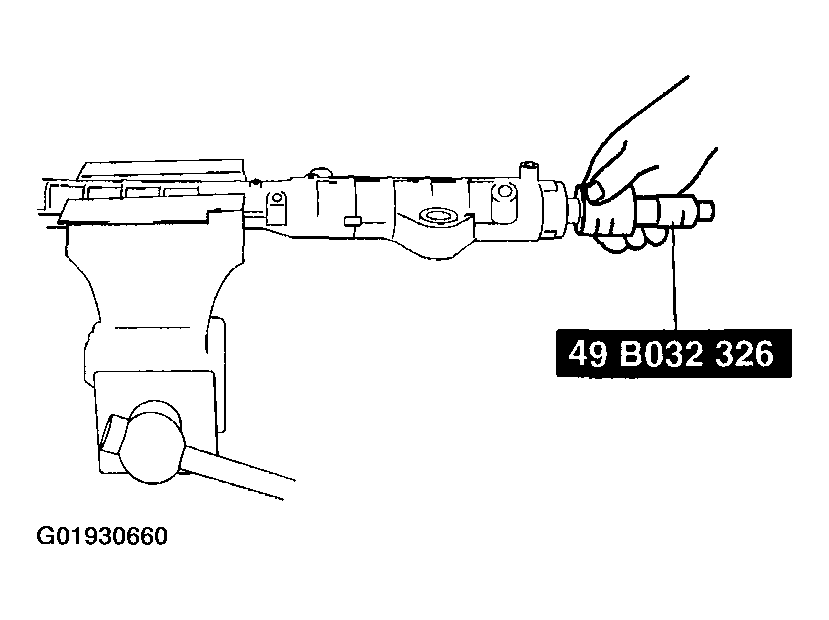

Fig 1: Installing Holder Assembly
Courtesy of MAZDA MOTORS CORP.
Stake the holder to the cylinder using a punch.

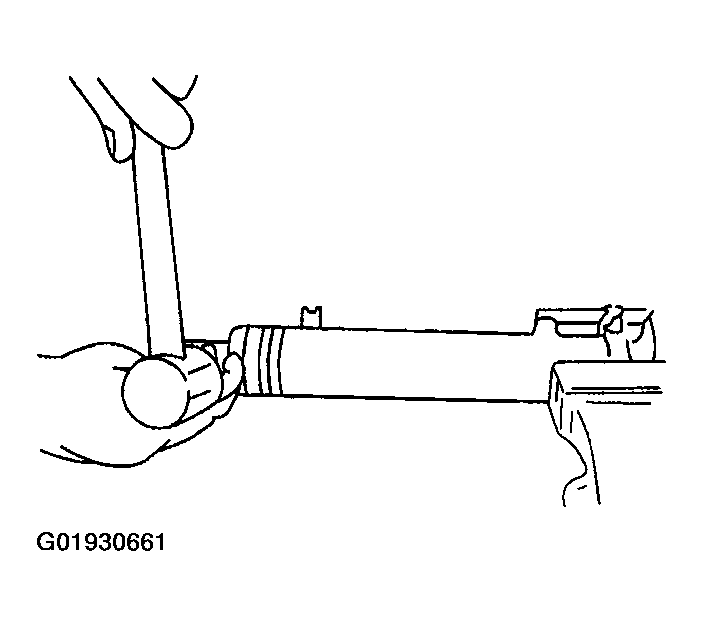

Fig 2: Staking Holder To Cylinder
Courtesy of MAZDA MOTORS CORP.
