Theft-Deterrent Control Module

1. Remove the theft-deterrent control module from the bracket without disconnecting the connectors. (For easy access to the module)

Terminal Voltage Table (Reference) - Connector View/Diagram:

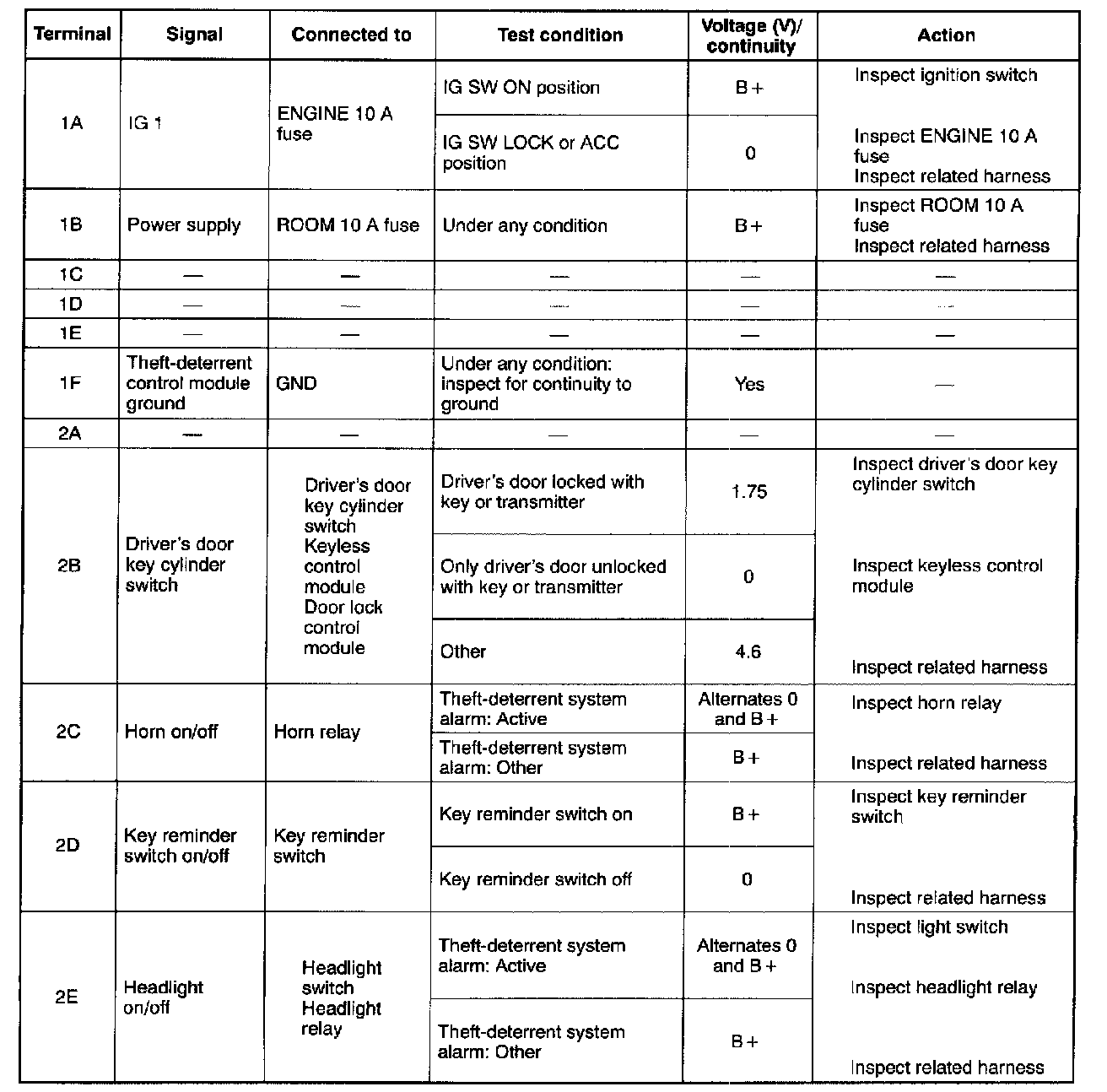

Terminal Voltage Table (Reference) - Pinouts (1A - 2E):

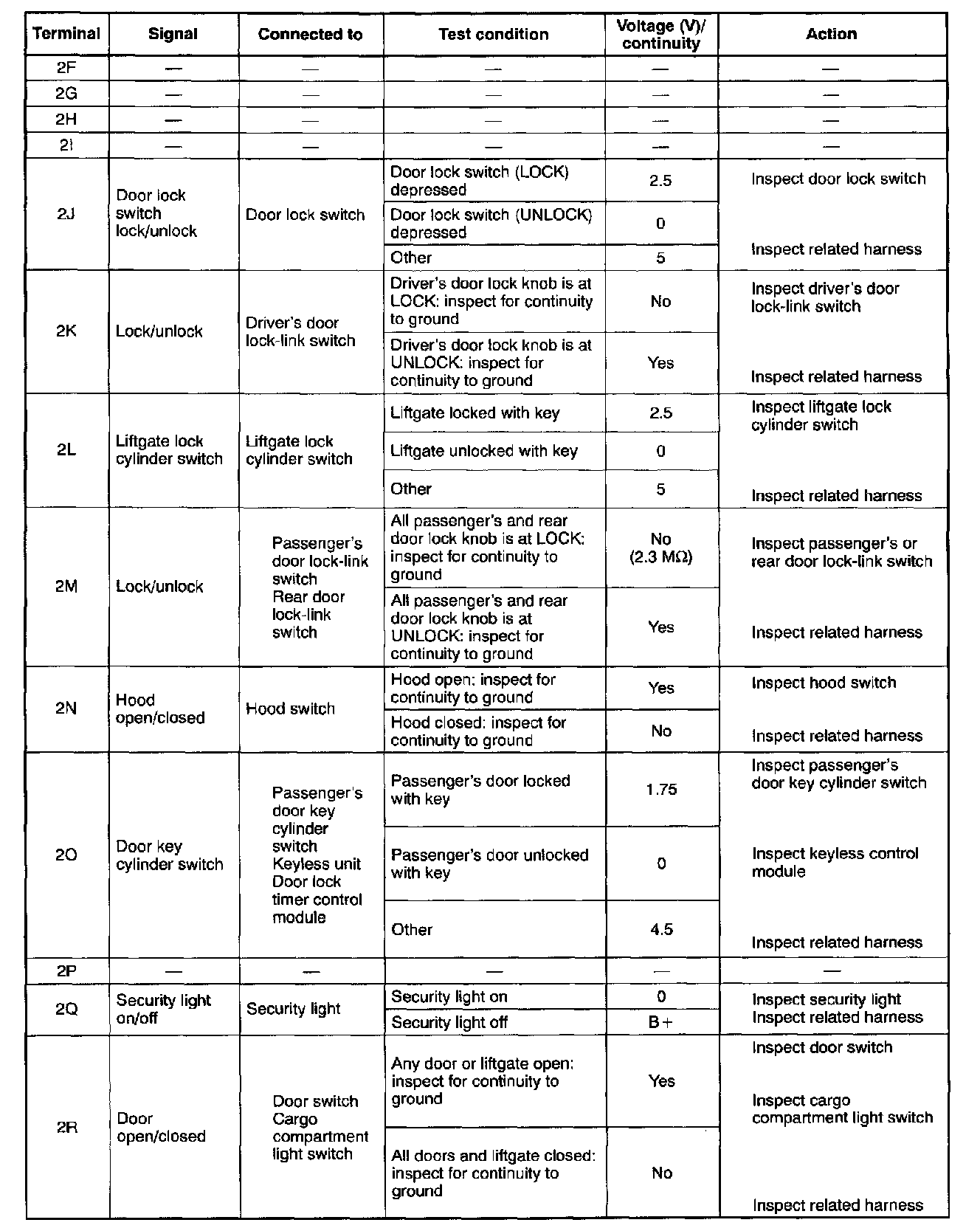

Terminal Voltage Table (Reference) - Pinouts (2F - 2R):

Terminal Voltage Table (Reference) - Pinouts (2S - 2T):

2. Measure the voltage at the theft-deterrent control module terminals as indicated.
3. Disconnect the theft-deterrent control module connector before inspecting for continuity at terminals 1F, 2K, 2M, 2N, and 2R.
- If not as specified, inspect the parts listed under "Action".
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the theft-deterrent control module.
