Cruise Control Module: Service and Repair

1. Disconnect the negative battery cable.
2. Remove the lower panel.

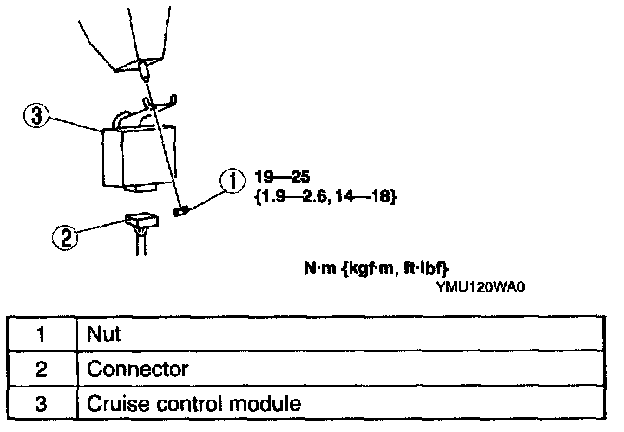

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
