Cylinder Block Assembly

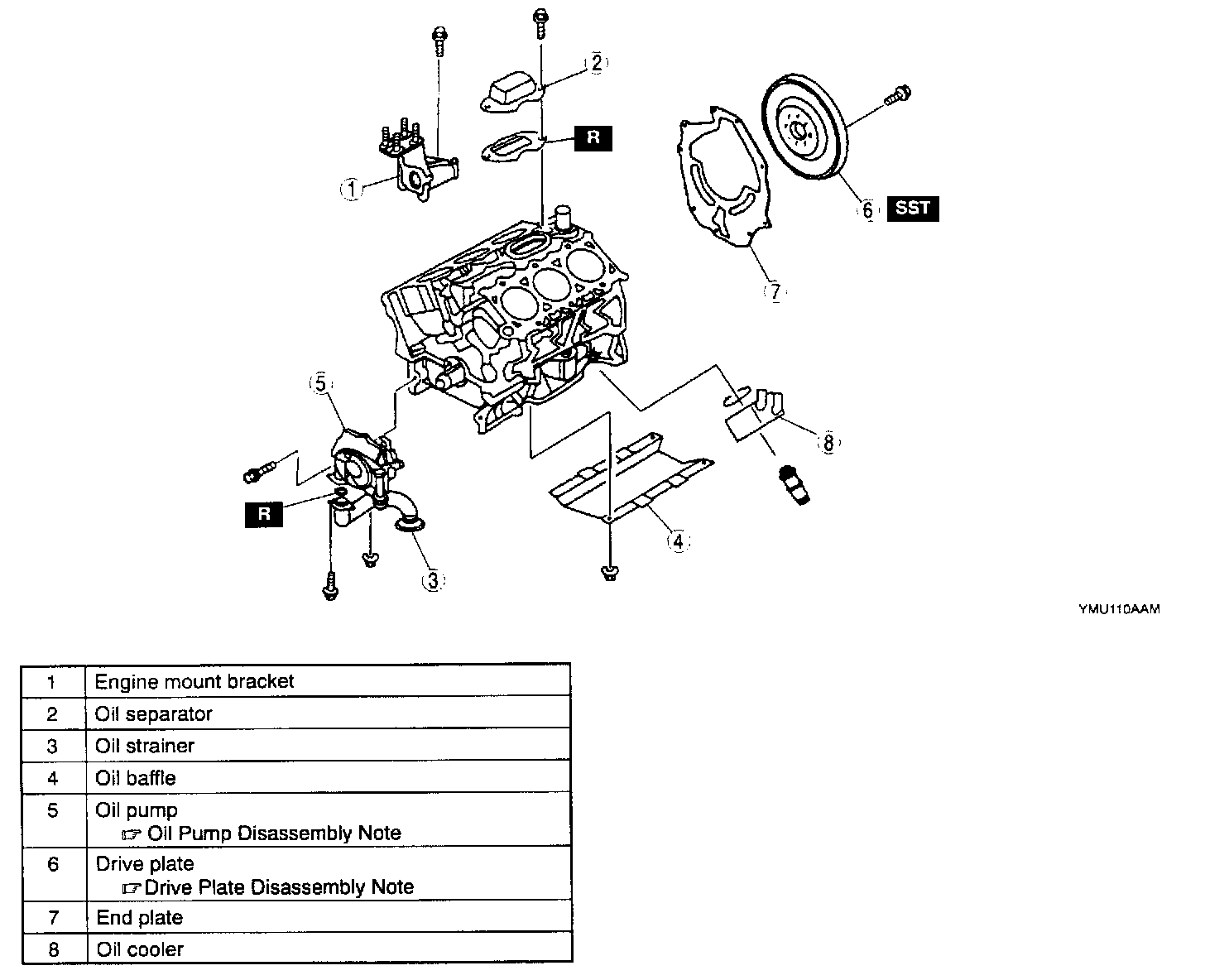

Cylinder Block (I) Disassembly/Assembly

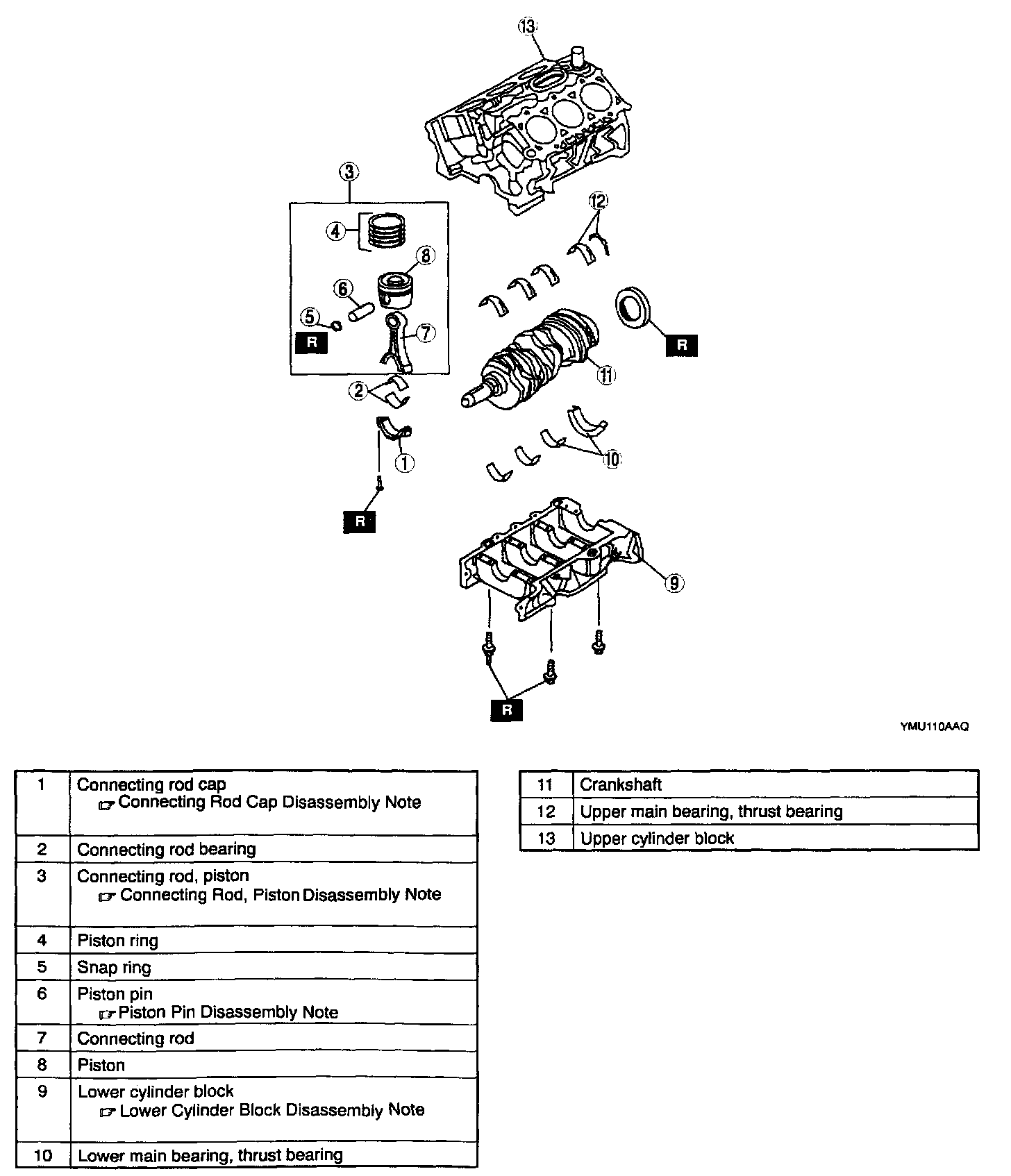

Cylinder Block (II) Disassembly/Assembly
