Front Climate Control Unit

REMOVAL
1. Disconnect the negative battery cable.
2. Disconnect the air mix and airflow mode wires from each wire clamp and link.
3. Remove the meter hood.

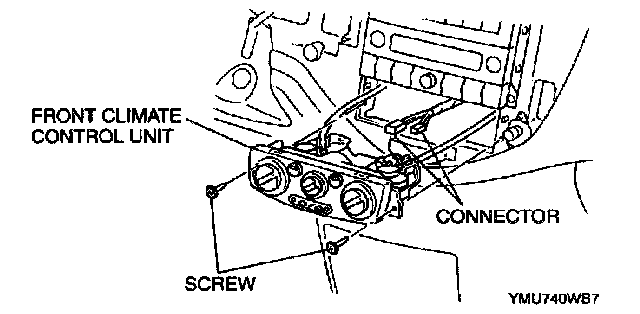

4. After removing the screws, pull the front climate control unit out and disconnect the connectors.




5. Remove the front climate control unit.

INSTALLATION
1. Install the front climate control unit to the center panel.

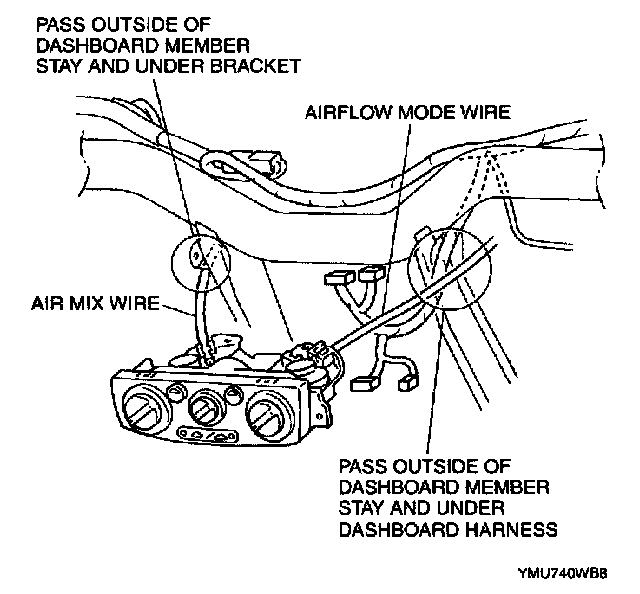

2. Pass each wire through the following routes then connect to front A/C unit.
3. Connect the front climate control unit connectors.
4. Install the meter hood.
5. Adjust the front climate control unit wire.
6. Connect the negative battery cable.
