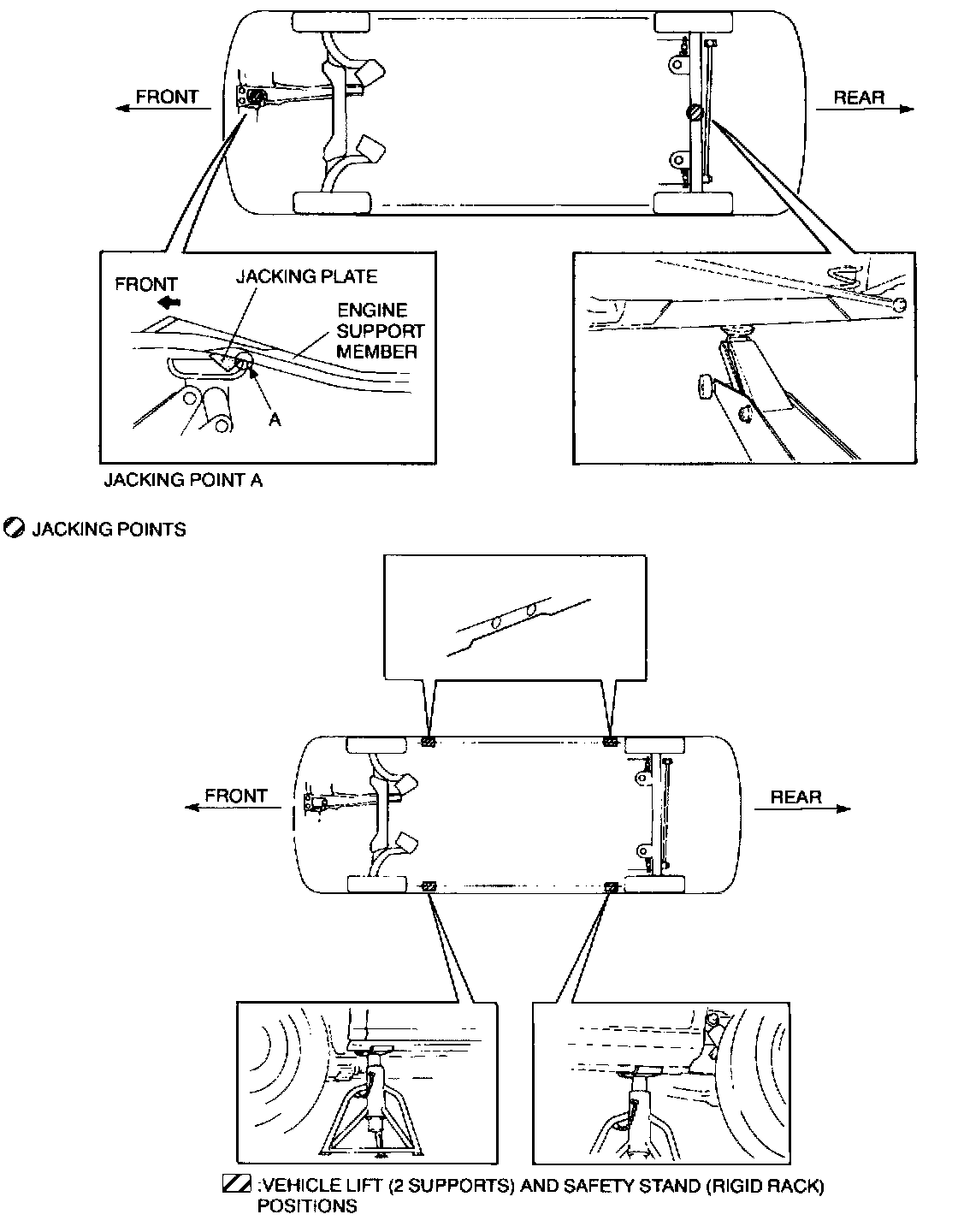

Jacking Position

WARNING: Improperly jacking a vehicle Is dangerous. The vehicle can slip off the jack and cause serious Injury. Use only the correct front and rear jacking positions and block the wheels.

Use safety stands to support the vehicle after it has been lifted.




Front
- At the jacking plate of the engine support member.
Rear
- At the center of torsion beam axle.
