Disassembly/Assembly

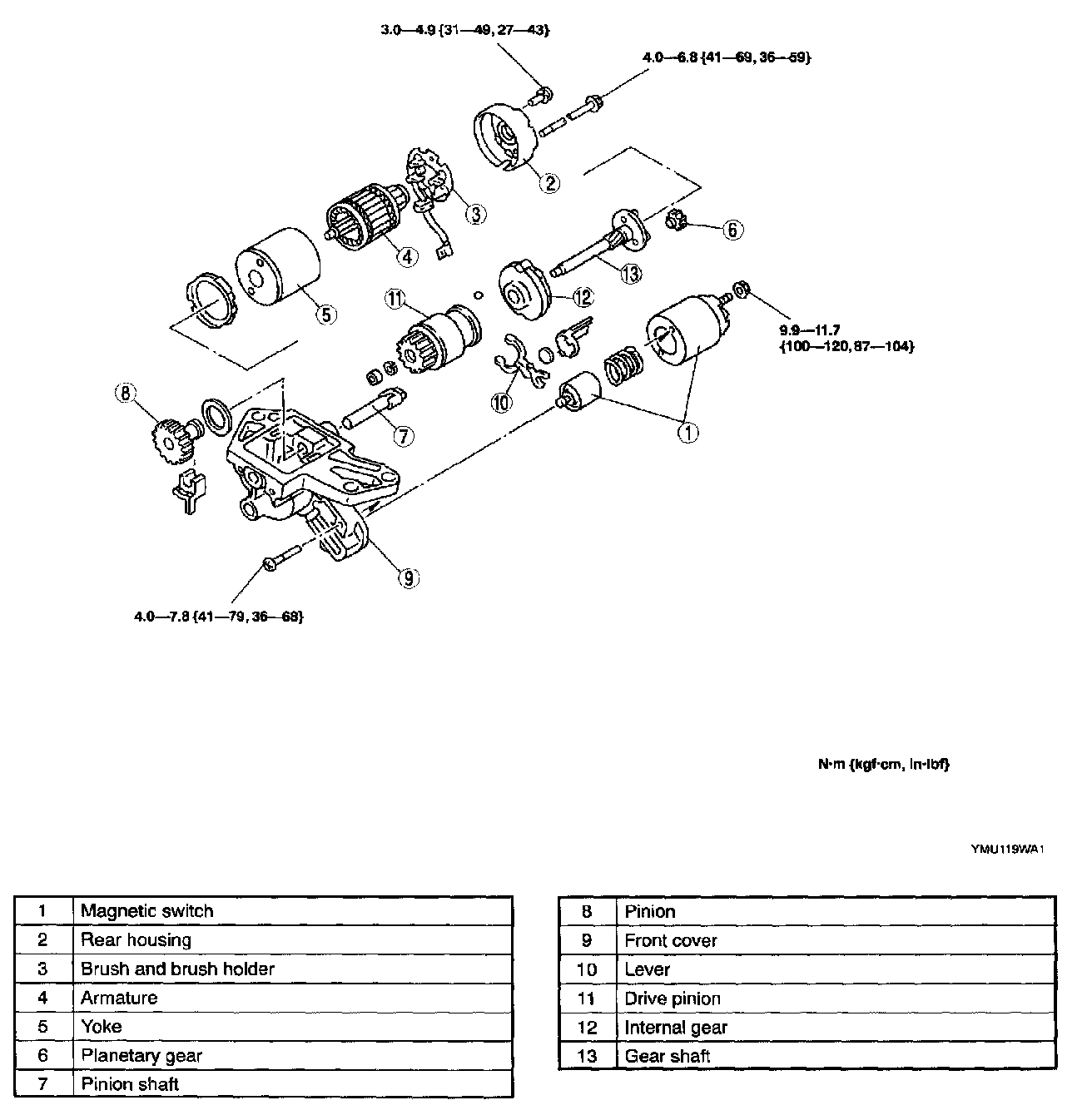

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
