Mode 6 - 1999-2023 MAZDA: MAZDA2: 2013

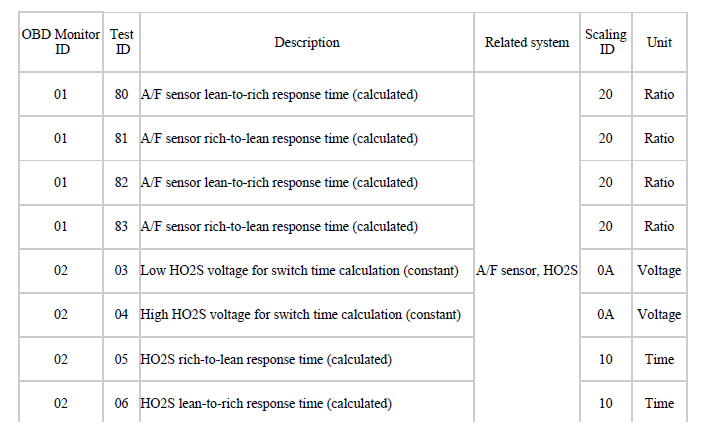

Fig 1: Mode $06 Data For '13 Mazda2 (1 Of 3)

G00535153

Courtesy of MAZDA MOTORS CORP.

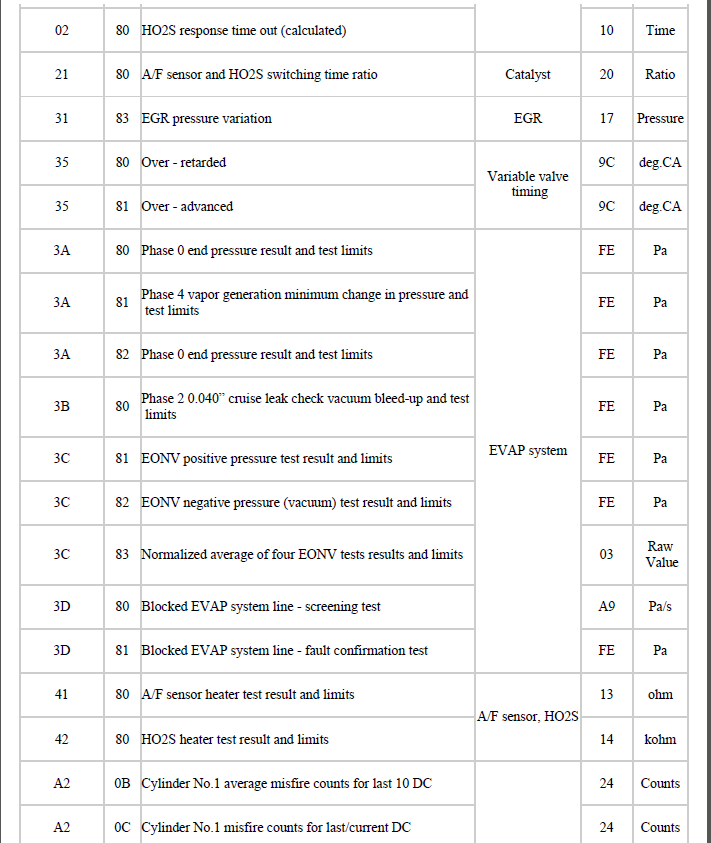

Fig 2: Mode $06 Data For '13 Mazda2 (2 Of 3)

G00535154

Courtesy of MAZDA MOTORS CORP.

Fig 3: Mode $06 Data For '13 Mazda2 (3 Of 3)

G00535155

Courtesy of MAZDA MOTORS CORP.
