Mode 6 - 1999-2023 MAZDA: MAZDA5: 2013

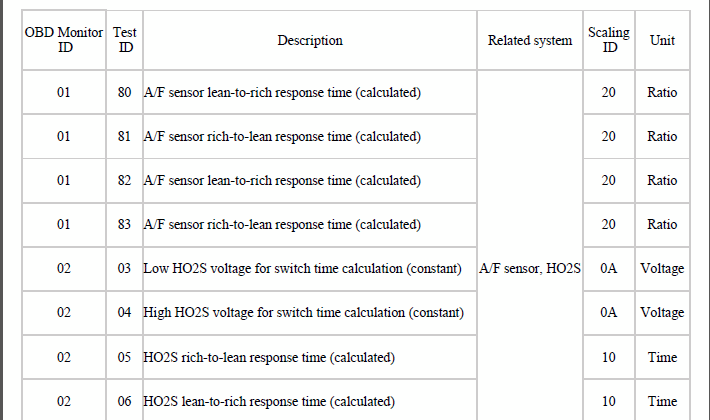

Fig 1: Mode $06 Data For '13 Mazda5 (1 Of 3)

G00535159

Courtesy of MAZDA MOTORS CORP.

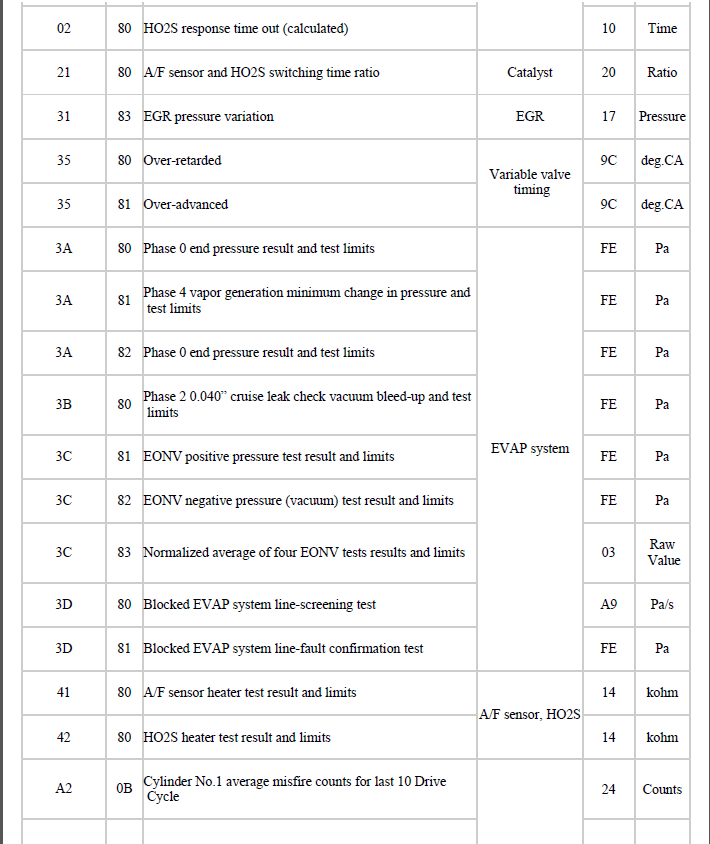

Fig 2: Mode $06 Data For '13 Mazda5 (2 Of 3)

G00535160

Courtesy of MAZDA MOTORS CORP.

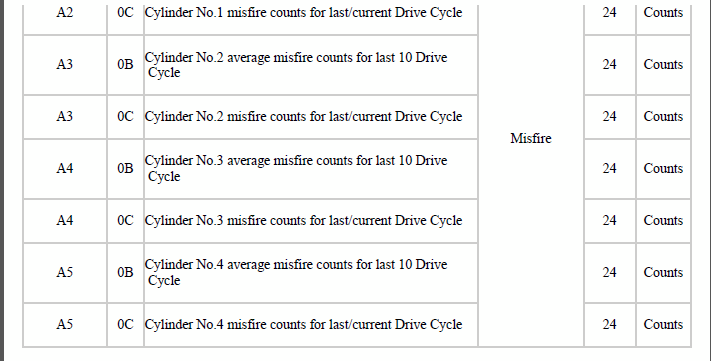

Fig 3: Mode $06 Data For '13 Mazda5 (3 Of 3)

G00535161

Courtesy of MAZDA MOTORS CORP.
