Front Toe Adjustment

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Centering Steering Wheel

Courtesy of MAZDA MOTORS CORP.

Start the engine and center the steering wheel.
Turn the engine off, and lock the steering wheel in position.
Check the toe settings. Follow the equipment manufacturer's instructions.

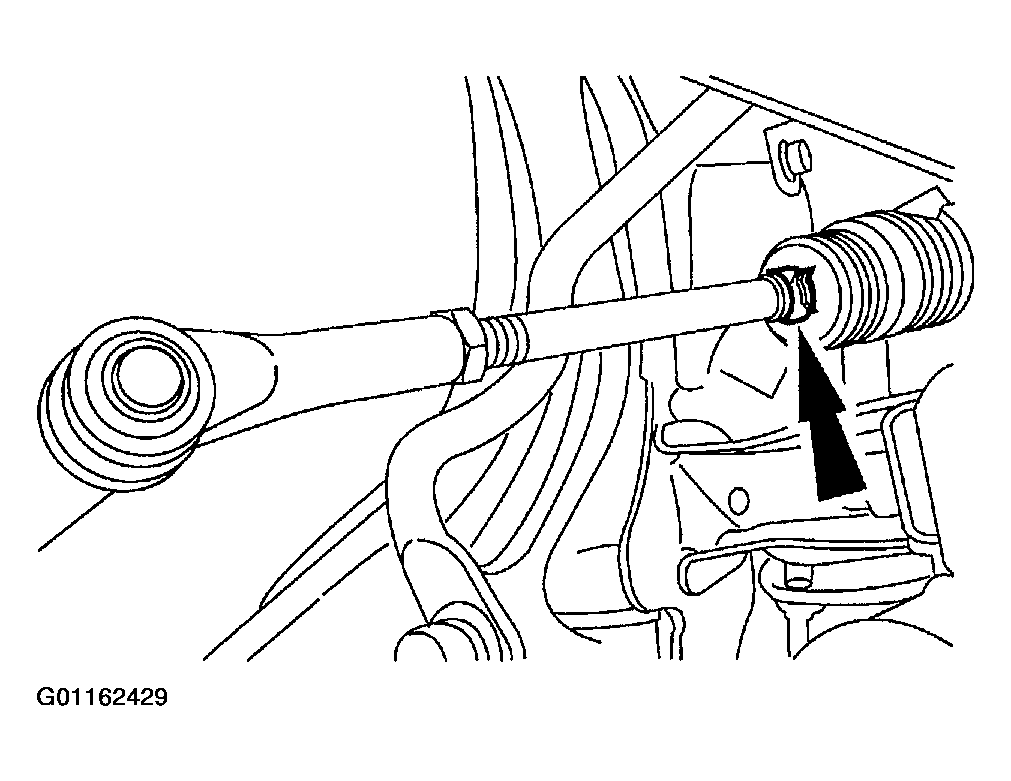

Fig 2: Removing Clamp
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Do not allow the steering gear bellows to twist when the front wheel spindle tie rod is rotated.
Remove the clamps.

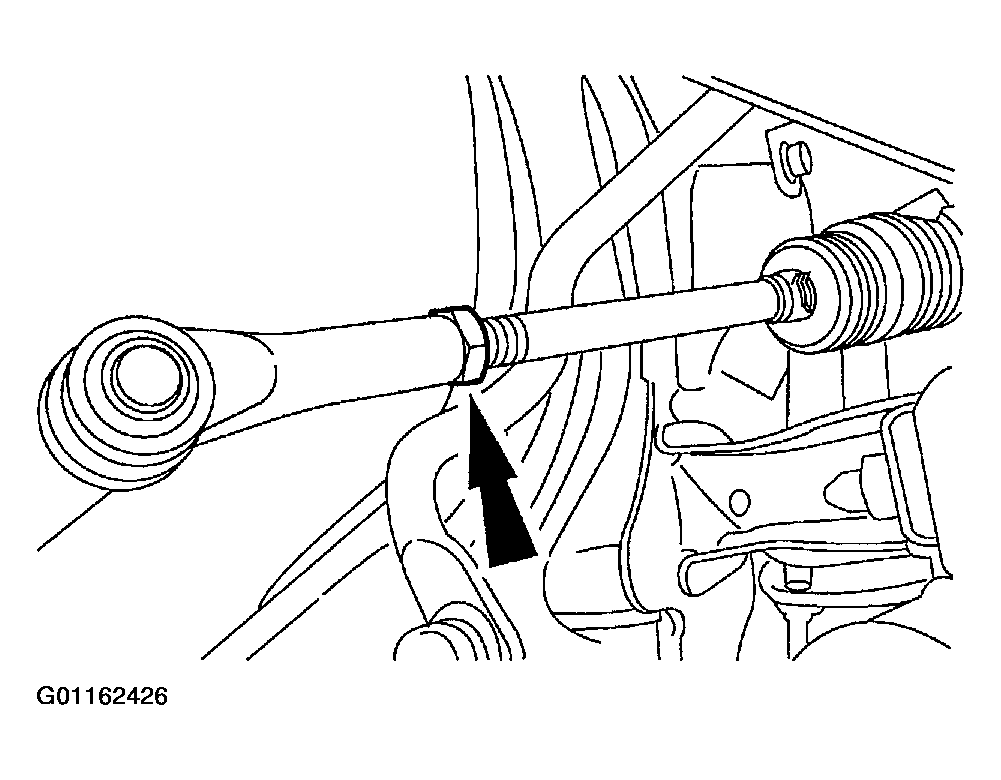

Fig 3: Loosening Nut
Courtesy of MAZDA MOTORS CORP.
Loosen the nuts.
1. Clean and lubricate the nut(s) and front wheel spindle tie rod threads.

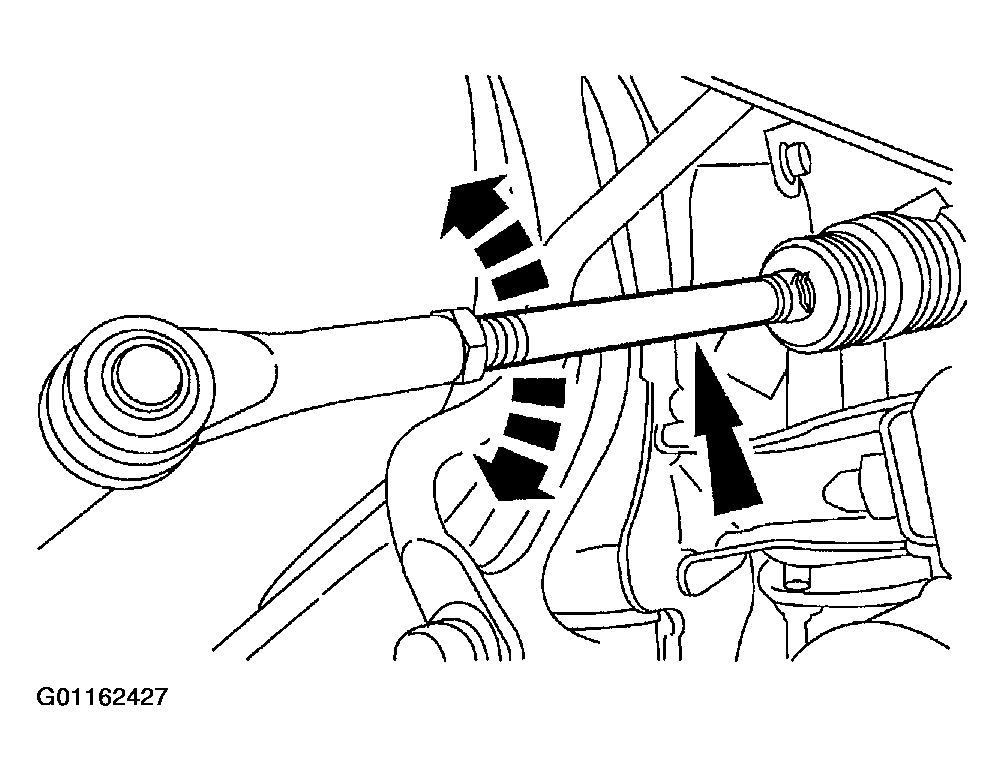

  Fig 4: Rotating Front Wheel Spindle Tie Rod
  Courtesy of MAZDA MOTORS CORP.
Rotate the front wheel spindle tie rods.

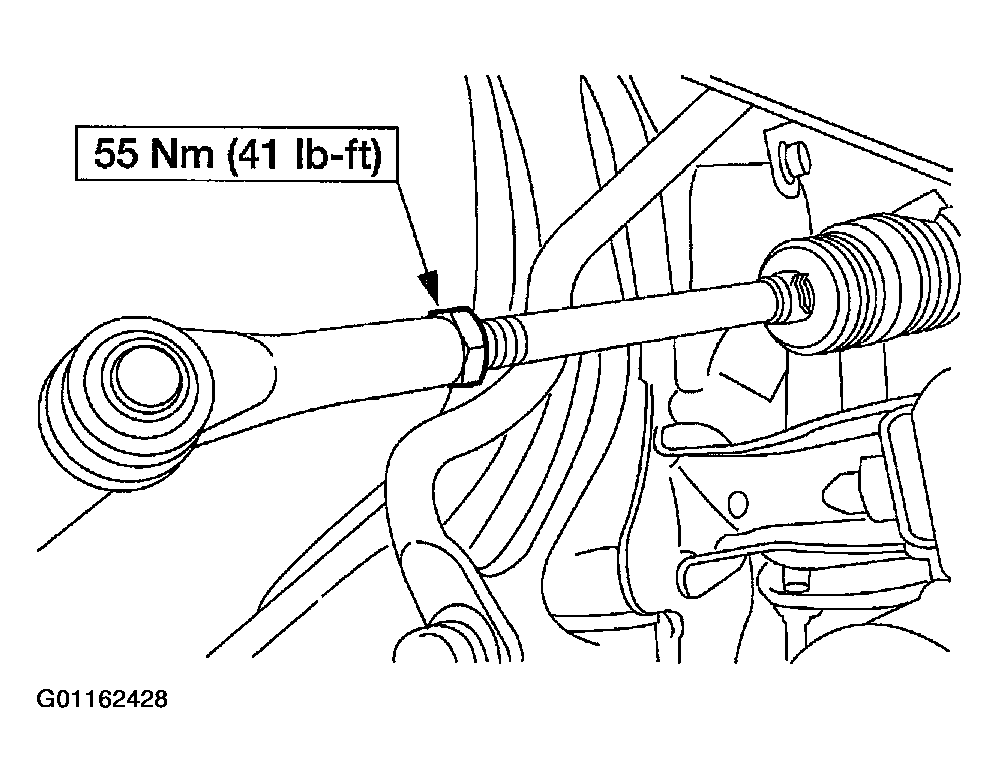

Fig 5: Tightening Nut
Courtesy of MAZDA MOTORS CORP.
Tighten the nuts.

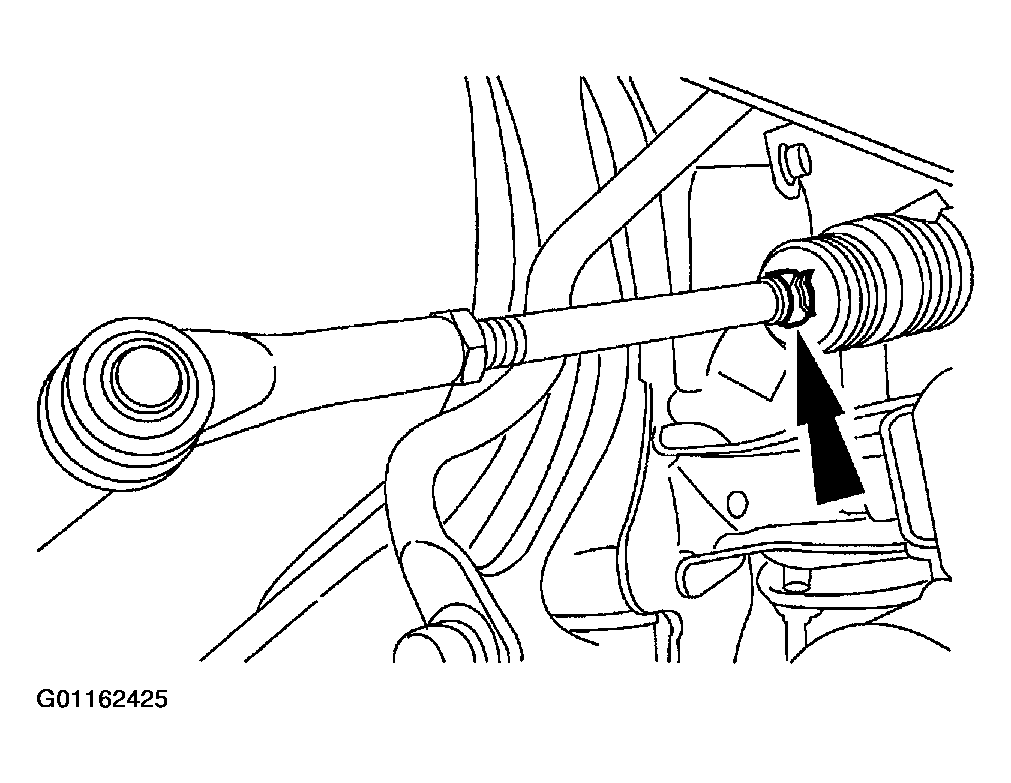

Fig 6: Installing Clamp
Courtesy of MAZDA MOTORS CORP.
Install the clamp(s).
Recheck the toe settings. Follow the equipment manufacturer's instructions.
