Front Lower Arm (Front): Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 6 and 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Engine code AJ is for the 3.0L V6 engine.

Remove the TWC (AJ) (only when removing/installing the right side front lower arm (front)). See EXHAUST SYSTEM REMOVAL/INSTALLATION [AJ] .
Remove in the order indicated in the illustration.

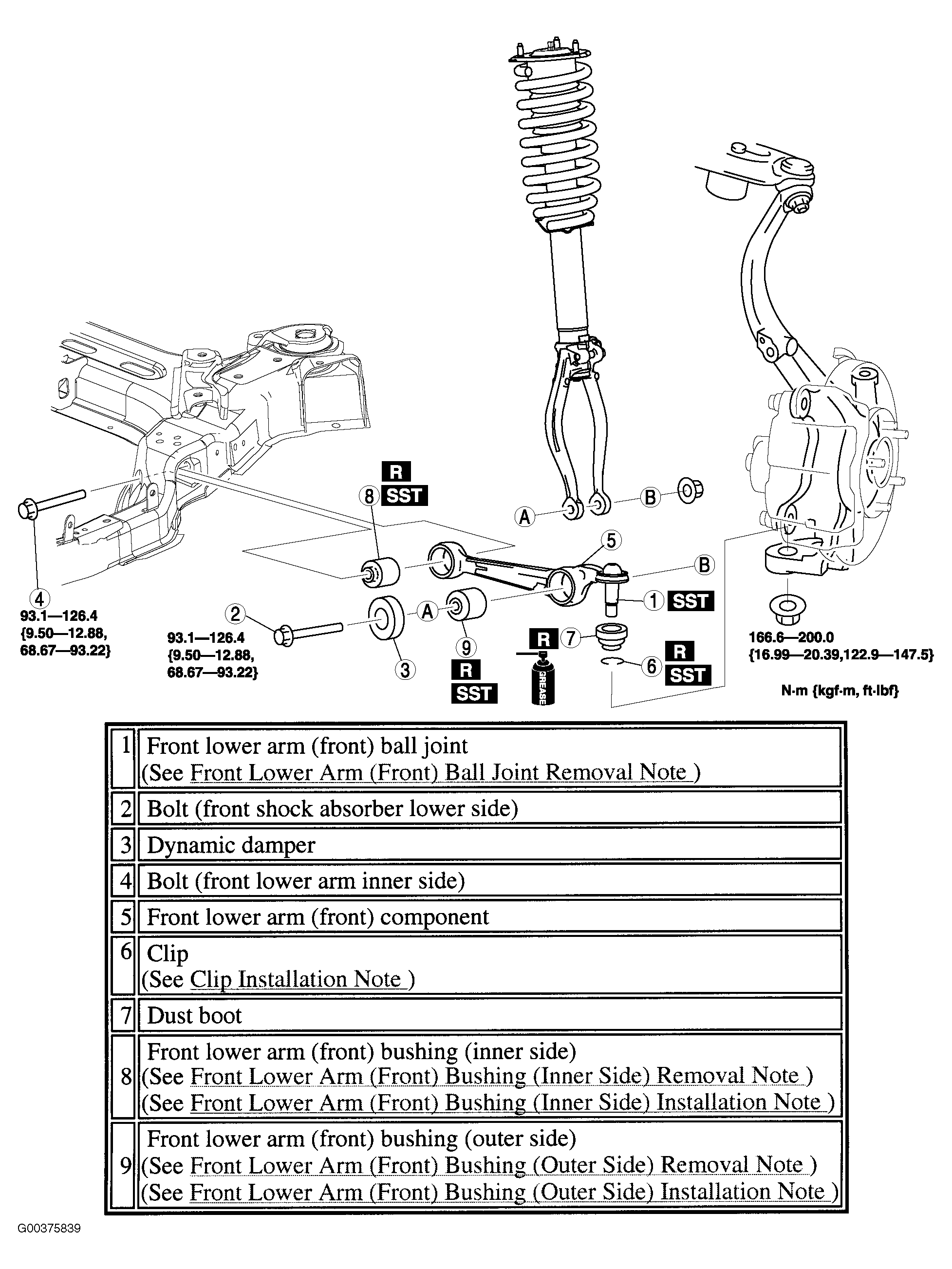

Fig 1: Removing Front Lower Arm
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
