Mounting Rubber Removal Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Suspend the engine using the SSTs.

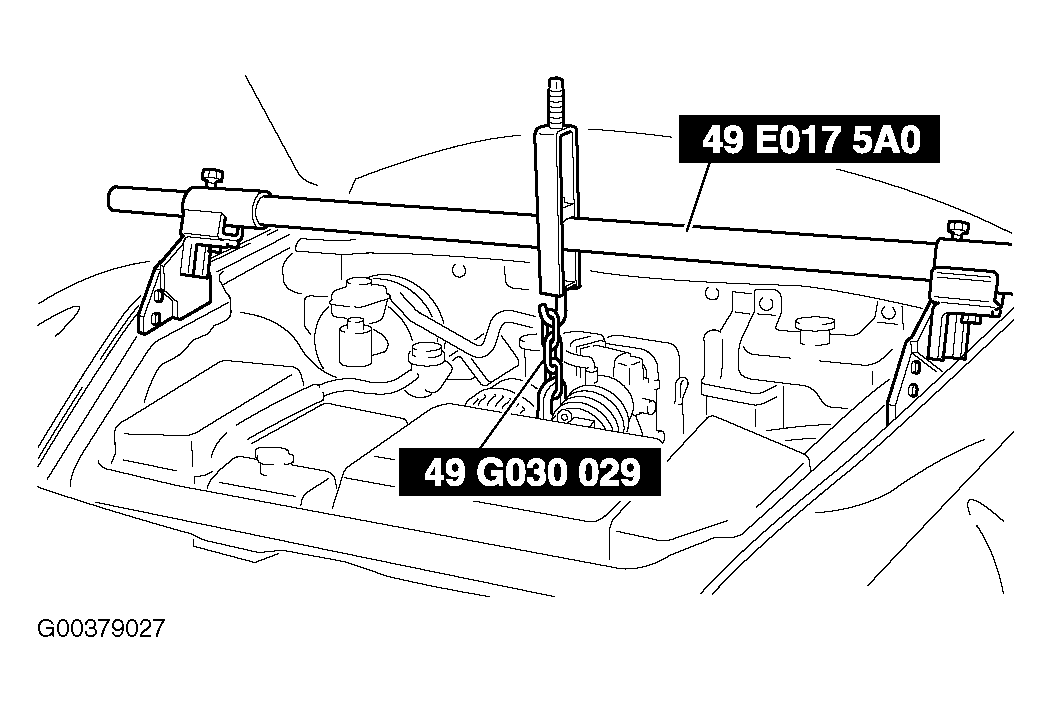

Fig 1: Suspending Engine
Courtesy of MAZDA MOTORS CORP.
Support the front crossmember using a jack.
WARNING: Verify that the crossmember component is securely supported by a jack. If the crossmember component falls, it could cause serious injury or death, or damage to the vehicle.

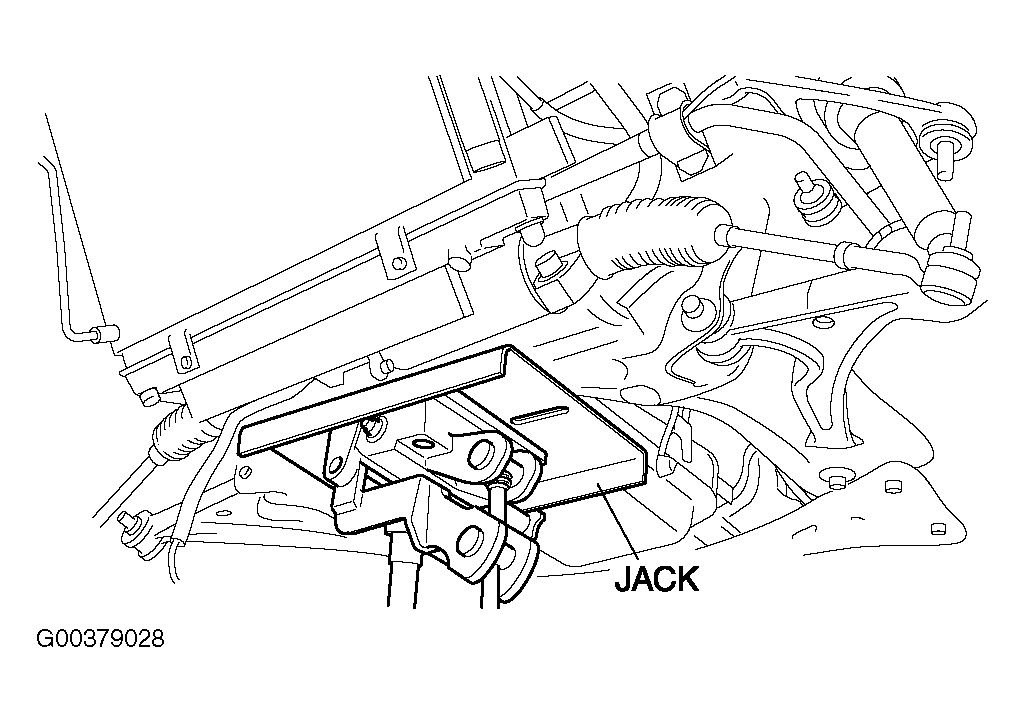

Fig 2: Suspending Front Crossmember With A Jack
Courtesy of MAZDA MOTORS CORP.
Remove the transverse member.
Remove the mounting rubber while gradually lowering the front crossmember.
