Bushing Removal Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

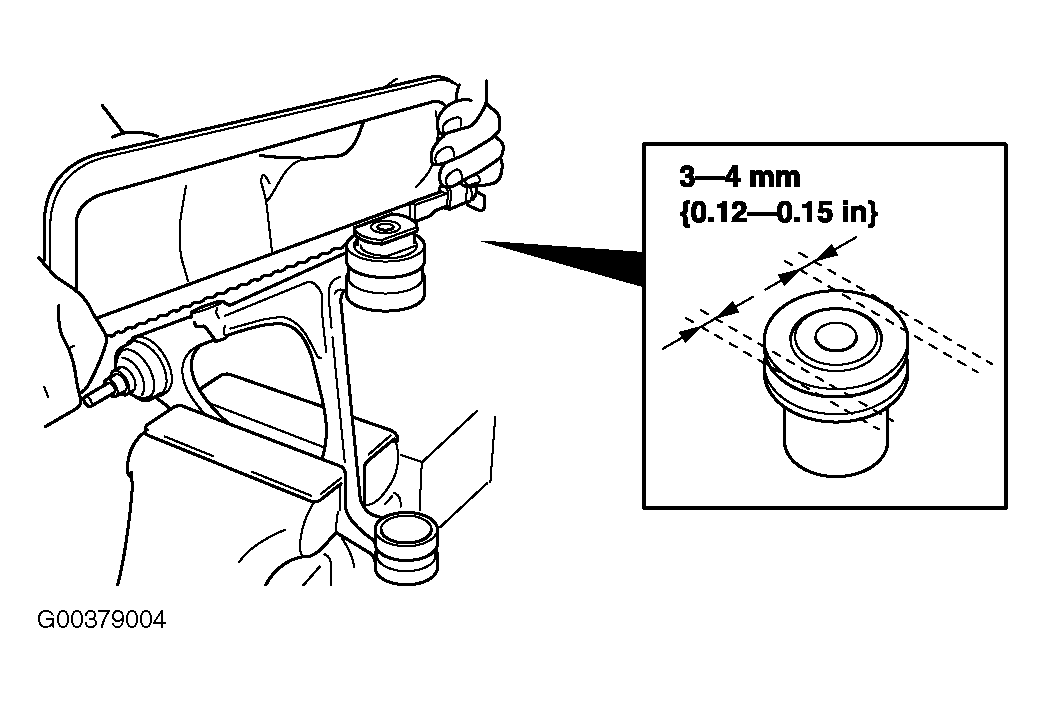

Cut off 0.12-0.15" (3-4 mm) from each side of the bushing knob using a hacksaw.

Fig 1: Removing Bushing
Courtesy of MAZDA MOTORS CORP.
Remove the bushing using the SSTs and a press.

Fig 2: Pressing Out Bushing
Courtesy of MAZDA MOTORS CORP.
