Torque Specifications
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | |||
|---|---|---|---|---|
| Front seat mounting bolts | 28-37 (38-50) | |||
| Instrument panel bolts | 12-19 (16-26) | |||
| Rear seat back bolts | 13-18 (18-24) | |||
| Seat belt | ||||

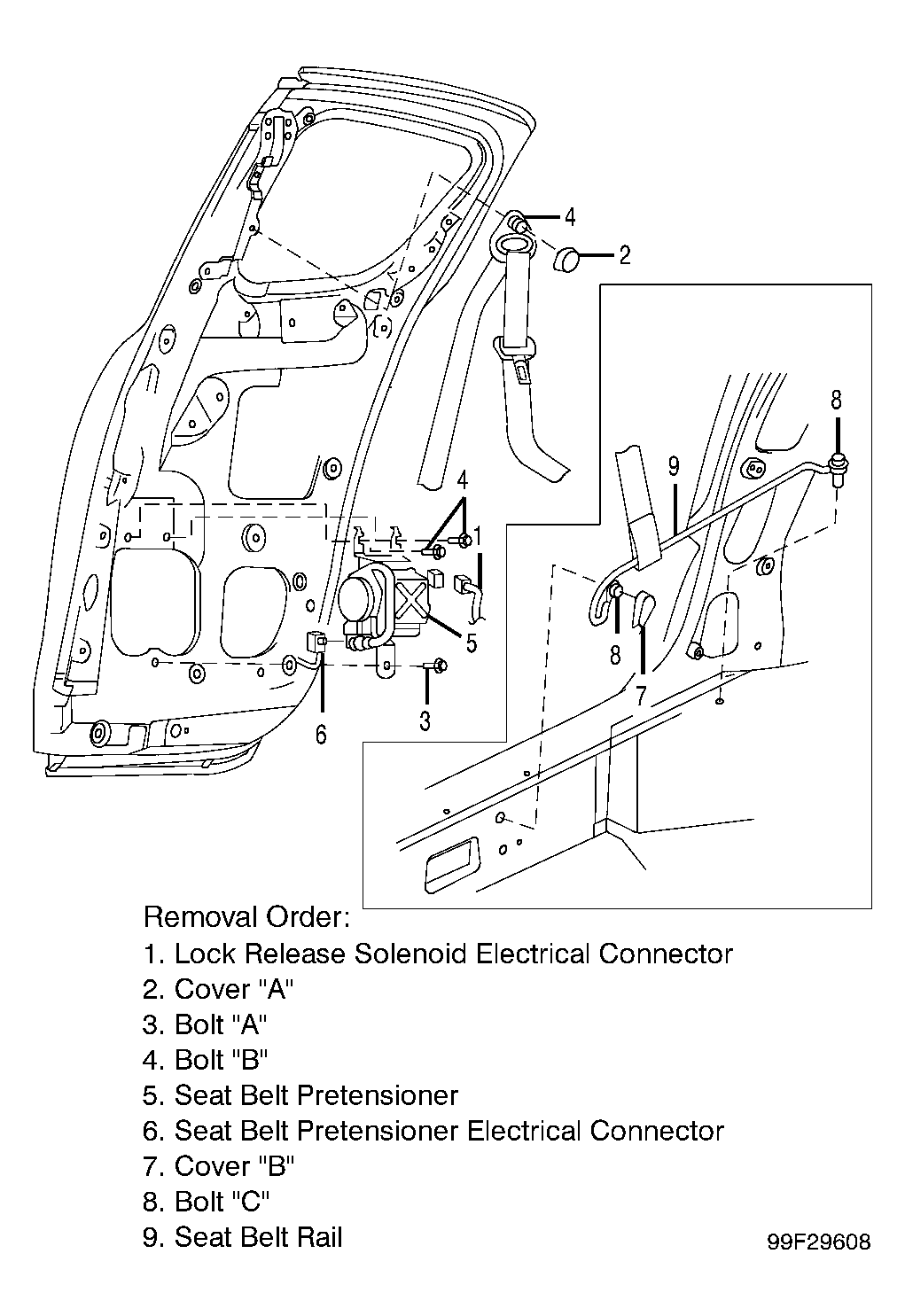

| Bolt "A"(1) | 27-40 (37-54) | |||
| Bolt "B"(1) | 27-40 (37-54) | |||
| Bolt "C"(1) | 28-57 (38-77) | |||
| Buckle bolt | 29-59 (39-80) | |||
| Steering column | ||||
| Shaft nuts | 12-16 (16-22) | |||
| Intermediate shaft joint bolts | 13-20 (18-27) | |||
| Steering wheel lock nut | 29-36 (39-49) | |||
| INCH Lbs. (N.m) | ||||
| Dual-stage driver-side air bag module mounting bolts | 70-104 (7.9-11.7) | |||
| Dual-stage passenger-side air bag module mounting bolts | 70-104 (7.9-11.7) | |||
| Front crash sensor mounting nut | 70-104 (7.9-11.7) | |||
| SAS control module air bag module mounting bolts | 79-112 (8.9-12.7) | |||
| Side air bag crash sensor bolt | 79-112 (8.9-12.7) | |||
| Side air bag module mounting bolt | 70-104 (7.9-11.7) | |||
| Side curtain air bag module bolts | 70-104 (7.9-11.7) | |||
|
||||
