Combination Switch Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the driver-side air bag module. See AIR BAG RESTRAINT SYSTEMS .
Remove the steering wheel. See STEERING WHEEL .
Remove the column cover. See COLUMN COVER .
Remove the clock spring. See CLOCKSPRING .
Remove in the order indicated in the illustration.

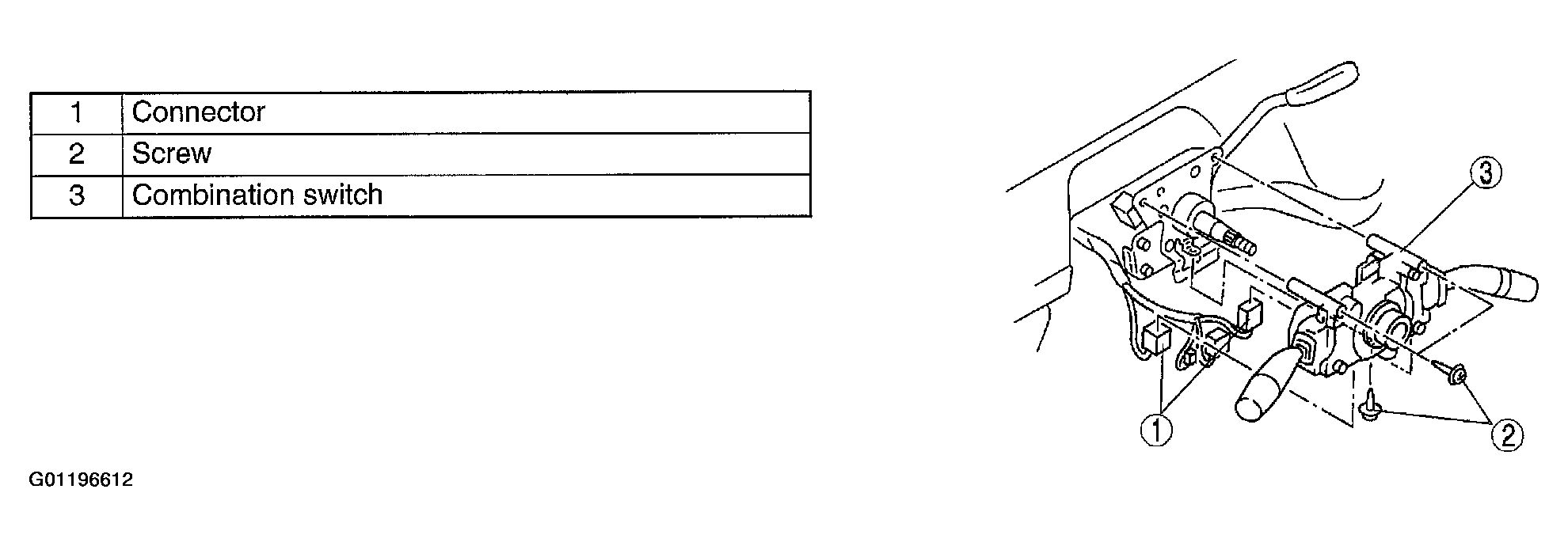

Fig 1: Removing Combination Switch
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
