Socket Installation Note

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

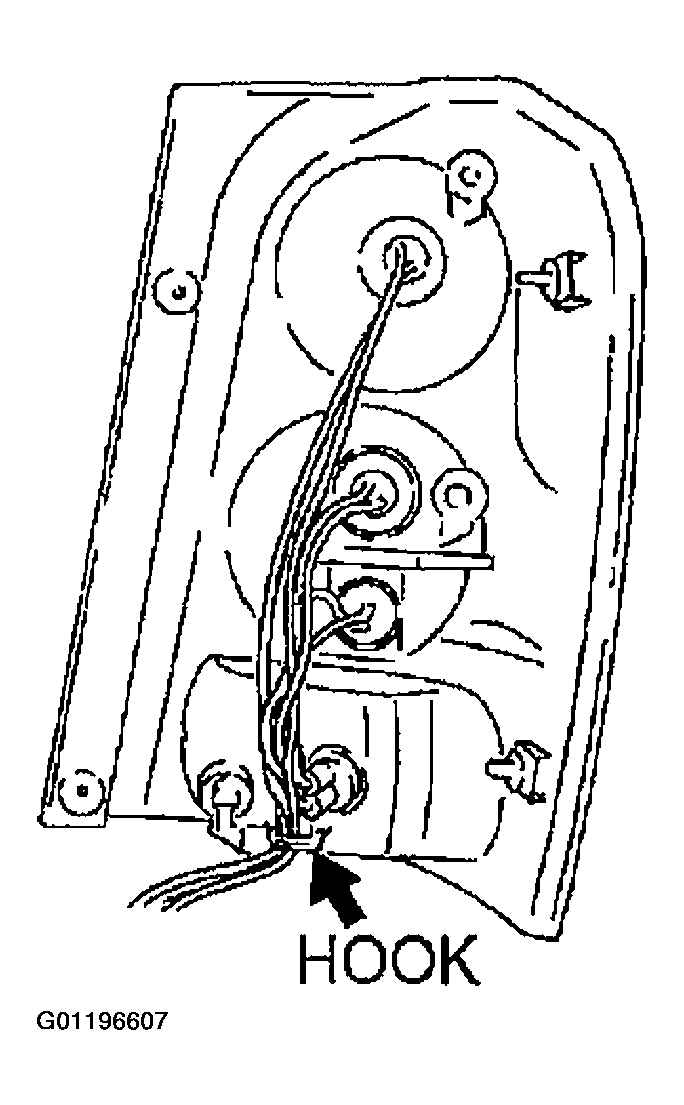

Hook the harness as shown in the figure.

Fig 1: Removing Rear Combination Light Inside Hook

Courtesy of MAZDA MOTORS CORP.
