Dashboard Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the driver-side air bag module. See DRIVER-SIDE AIR BAG MODULE .
  3. Remove the passenger-side air bag module. See PASSENGER-SIDE AIR BAG MODULE .
  4. Remove the steering wheel. See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .
  5. Remove the column cover.
  6. Remove the side wall. See SIDE WALL REMOVAL/INSTALLATION  .
  7. Remove the front side trim. See FRONT SIDE TRIM REMOVAL/INSTALLATION  .
  8. Remove the under cover.
  9. Remove the lower panel. See LOWER PANEL REMOVAL/INSTALLATION  .
  10. Remove the installation nuts then shift the assembled steering shaft in the dashboard. See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .
  11. Remove the PCM. See POWERTRAIN CONTROL MODULE .
  12. Remove the A-pillar trim.
  13. Remove in the order indicated in Fig 1 .
  14. Install in the reverse order of removal.

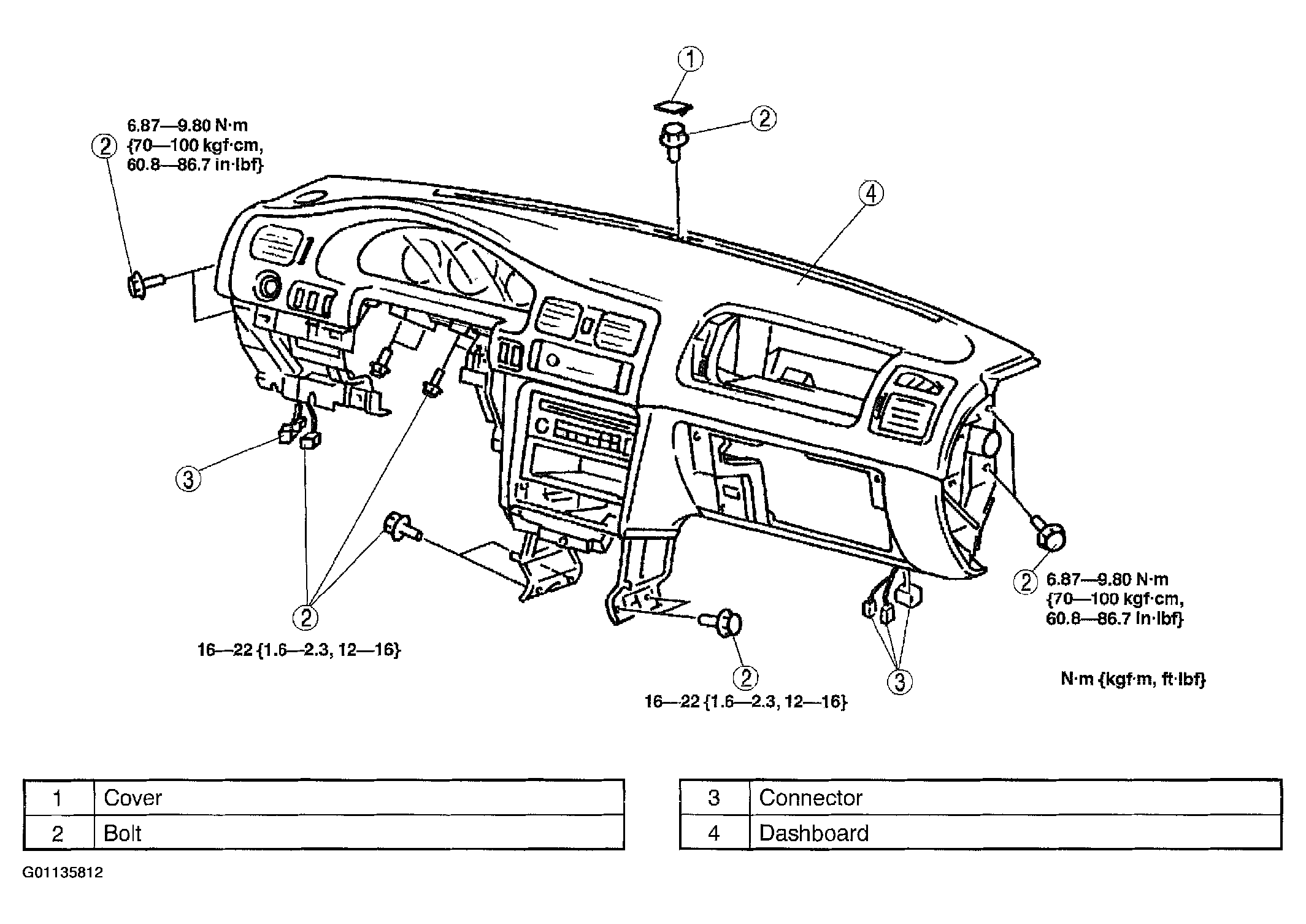

    Fig 1: Removing/Installing Dashboard
    G01135812Courtesy of MAZDA MOTORS CORP.
