A/C Unit Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.
Assemble in the reverse order of disassembly.

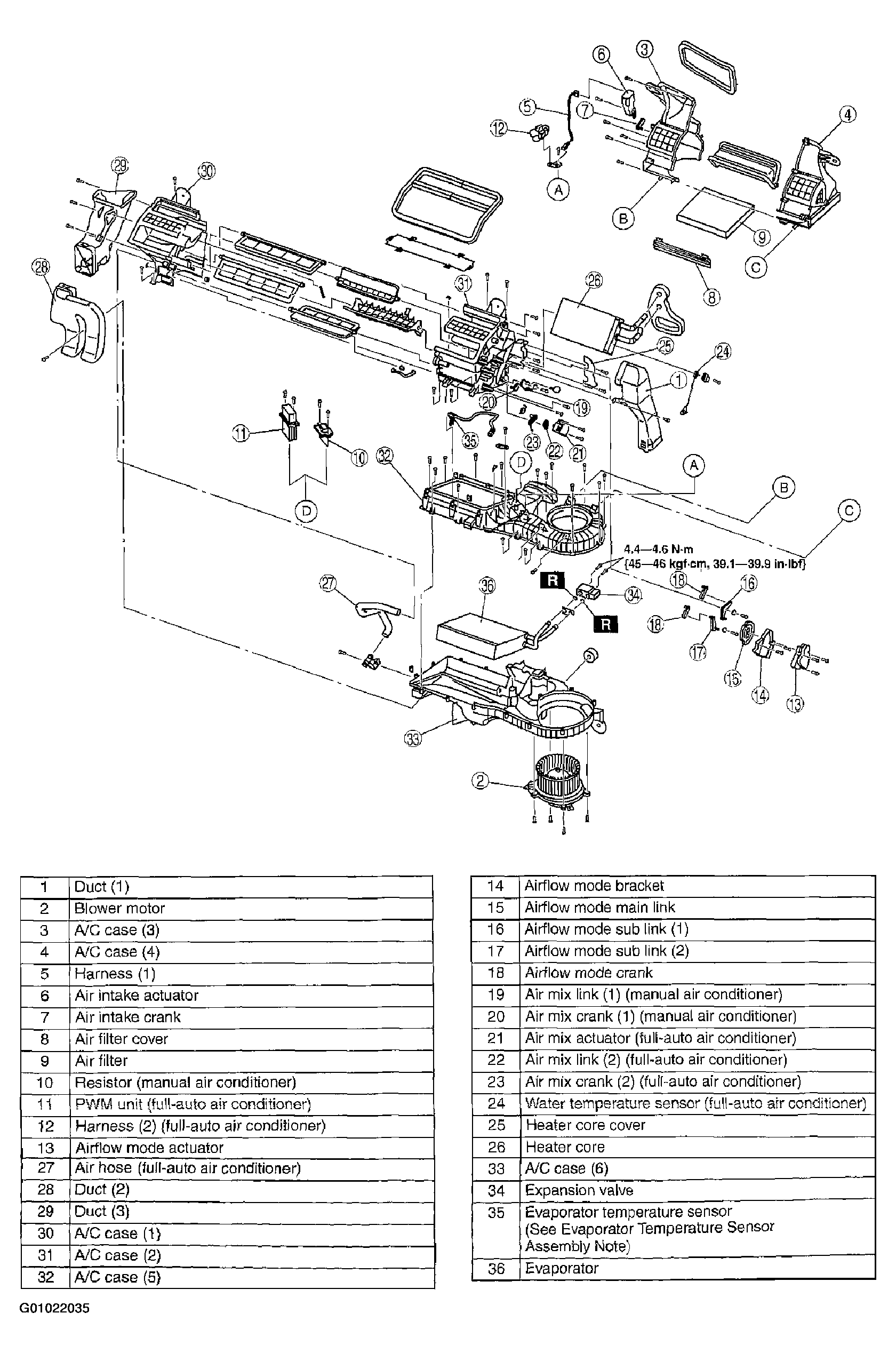

Fig 1: Identifying A/C Unit Components
Courtesy of MAZDA MOTORS CORP.
