Climate Control Unit Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.

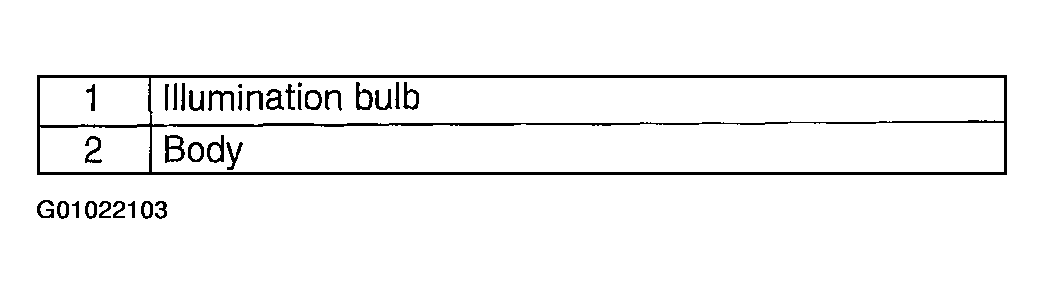

    Fig 1: Disassembling Order Of Climate Control Unit Table (Automatic Air Conditioner)
    G01022103Courtesy of MAZDA MOTORS CORP.

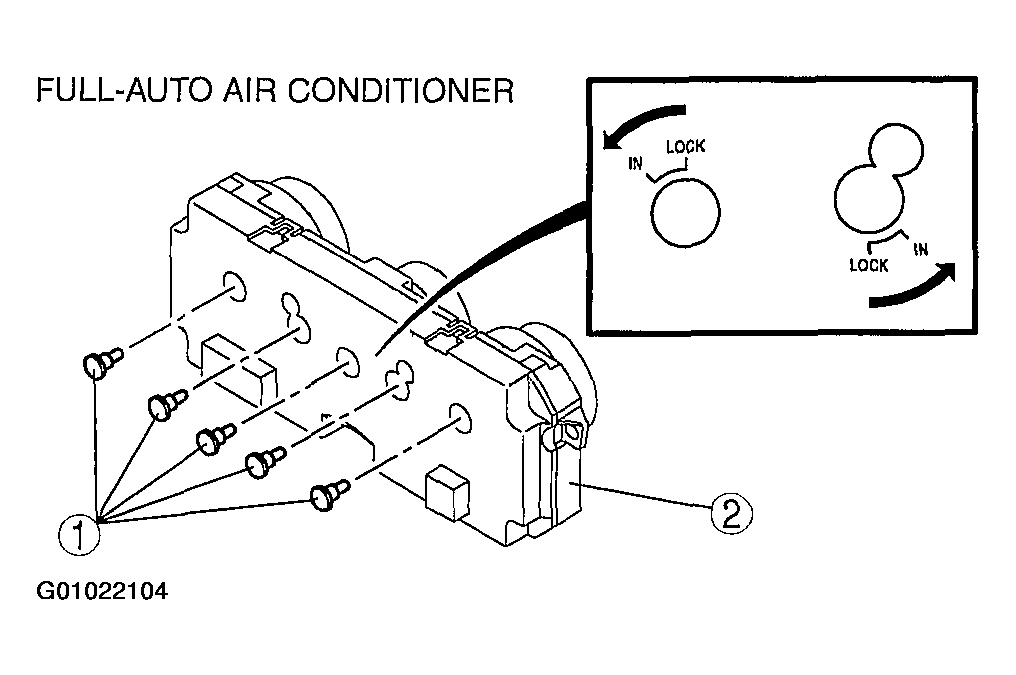

    Fig 2: Disassembling/Assembling Climate Control Unit (Automatic Air Conditioner)
    G01022104Courtesy of MAZDA MOTORS CORP.

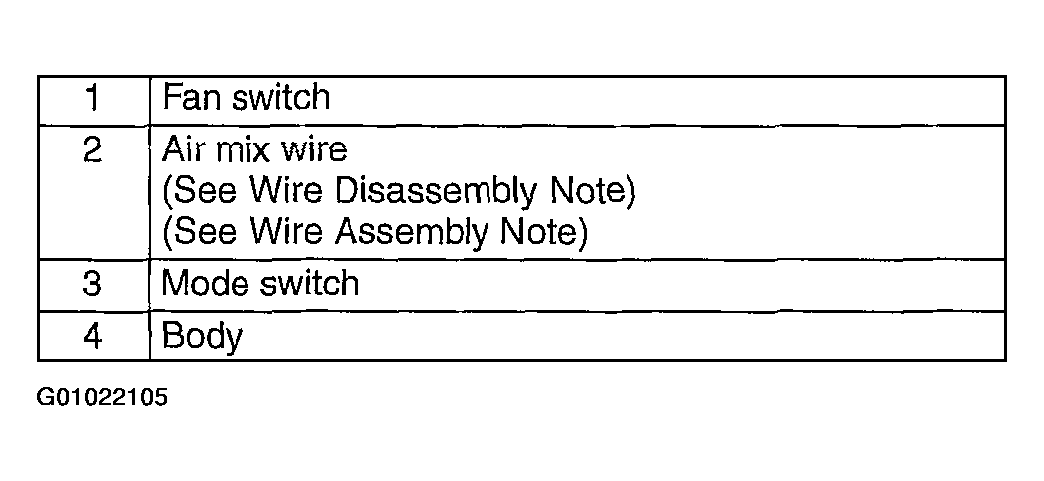

    Fig 3: Disassembling Order Of Climate Control Unit Table (Manual Air Conditioner)
    G01022105Courtesy of MAZDA MOTORS CORP.

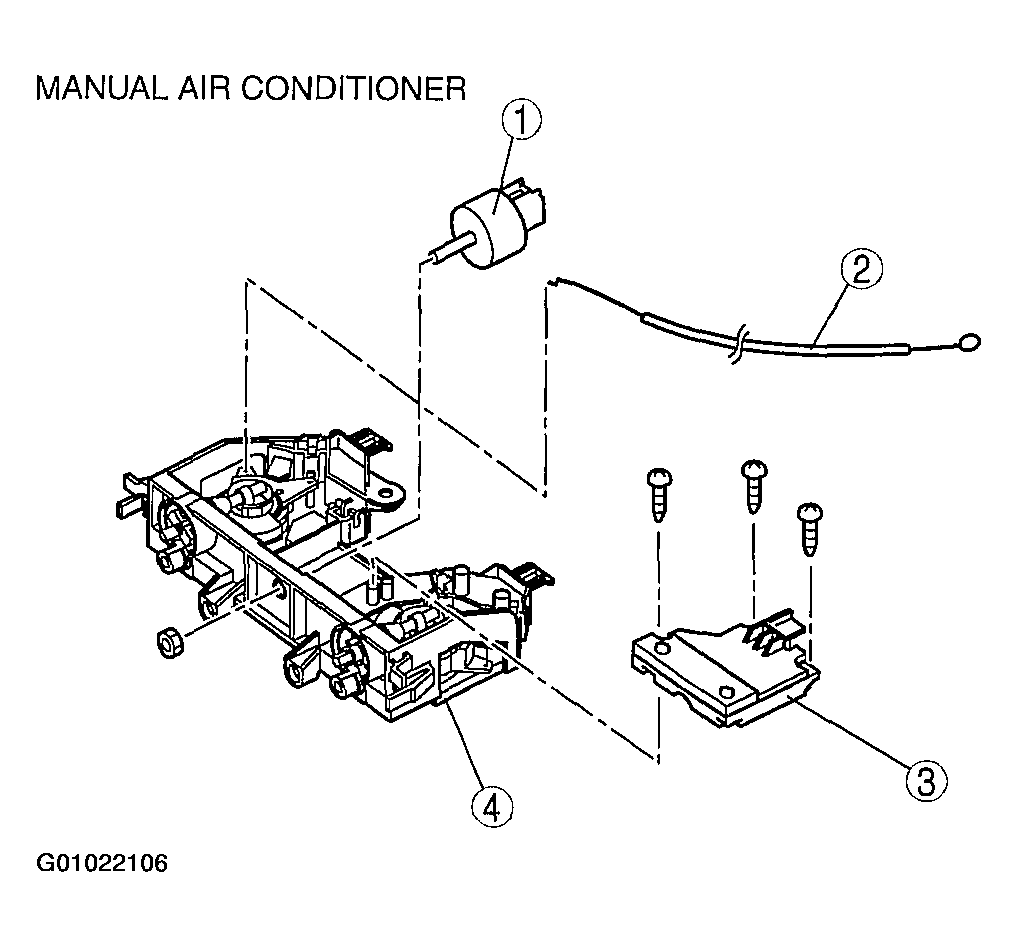

    Fig 4: Disassembling Order Of Climate Control Unit (Manual Air Conditioner)
    G01022106Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
