Wire Assembly Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the wire to the position as shown in the figure.

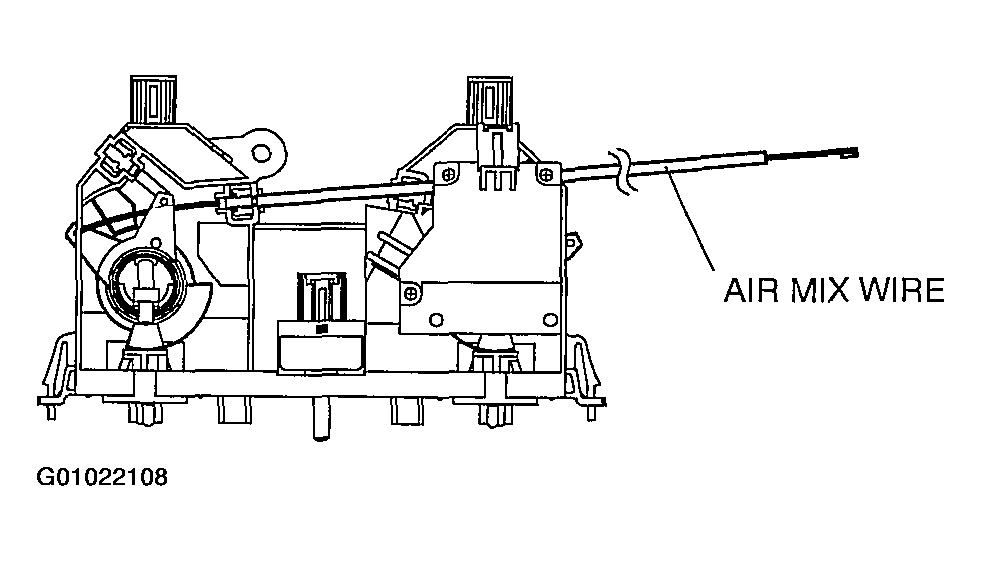

    Fig 1: Assembling Air Mix Wire
    G01022108Courtesy of MAZDA MOTORS CORP.
