DTC P0340: CMP Sensor Circuit Malfunction: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

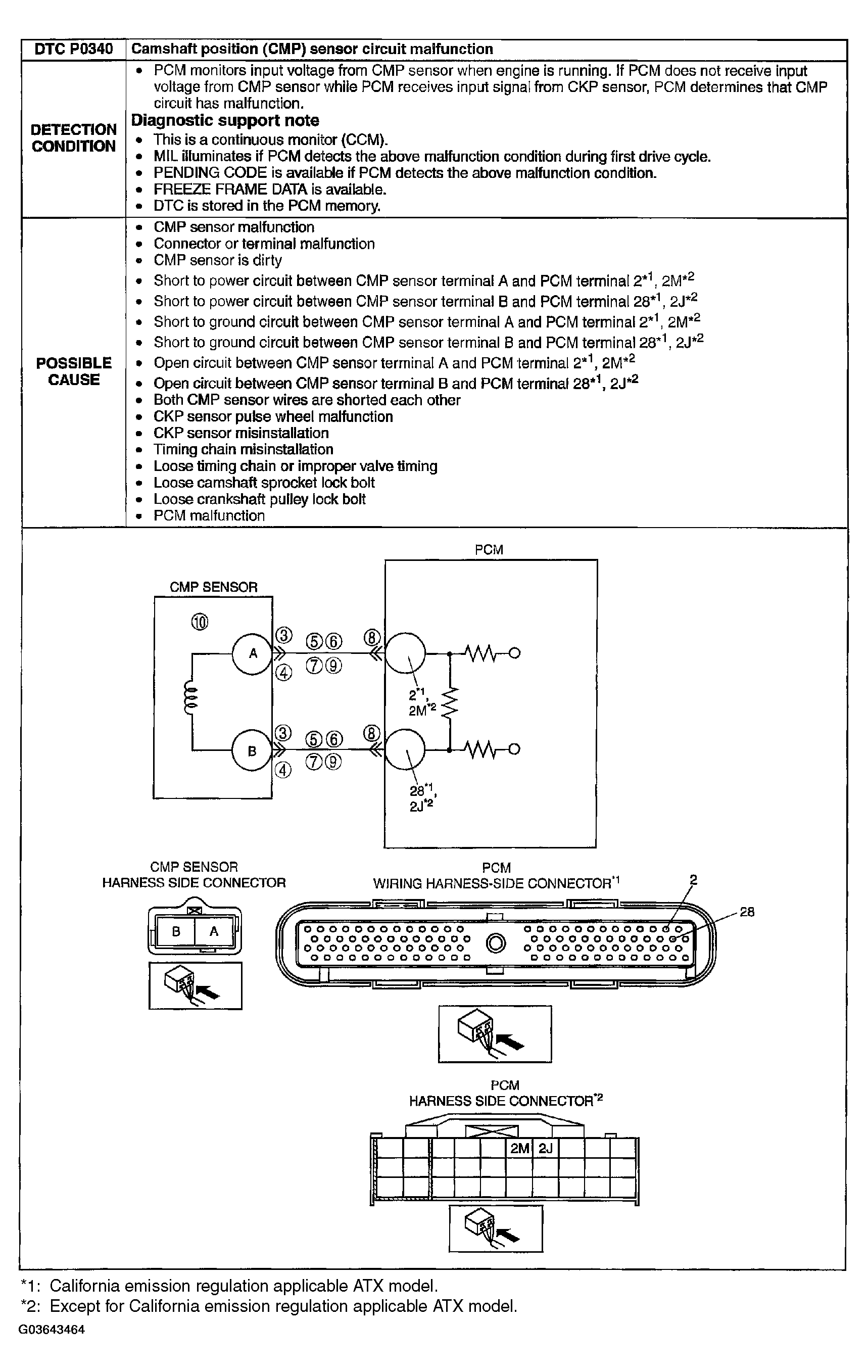

Fig 1: DTC P0340 Detection Condition & Possible Causes
G03643464Courtesy of MAZDA MOTORS CORP.
