DTC P2010: Variable Tumble Control Solenoid Valve Circuit High Input: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

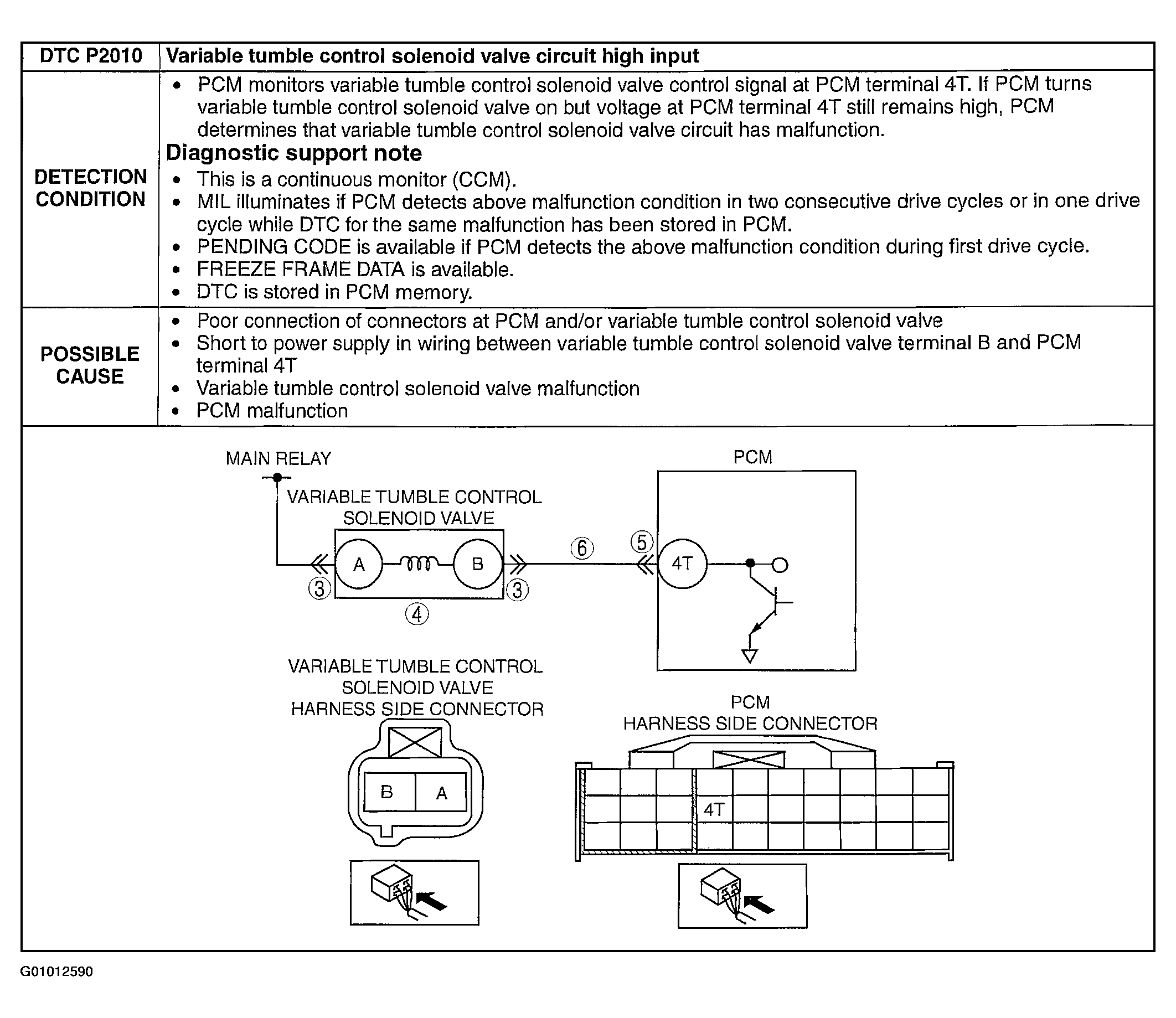

Fig 1: DTC P2010 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views
G01012590Courtesy of MAZDA MOTORS CORP.
