Freeze Frame PID Data Access Procedure
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Perform the necessary vehicle preparation and visual inspection.

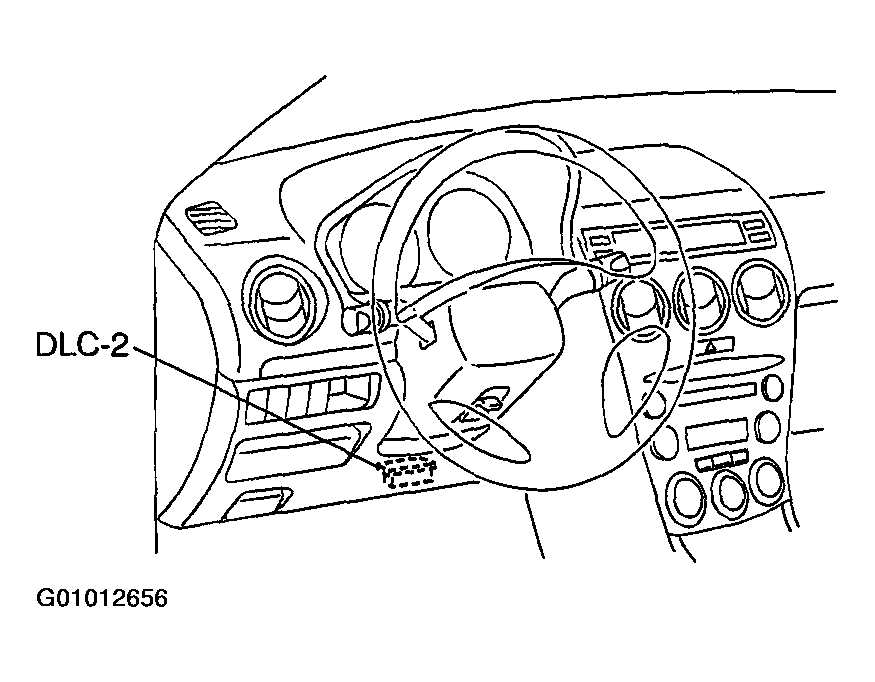

- Connect WDS or equivalent to the vehicle DLC-2 16-pin connector located at the left side of the center console.
- Record the FREEZE FRAME PID DATA by WDS or equivalent. See Figure
