Coil Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hole of coil to the tab of steering lock.
  2. Install the hook of coil to the steering lock.

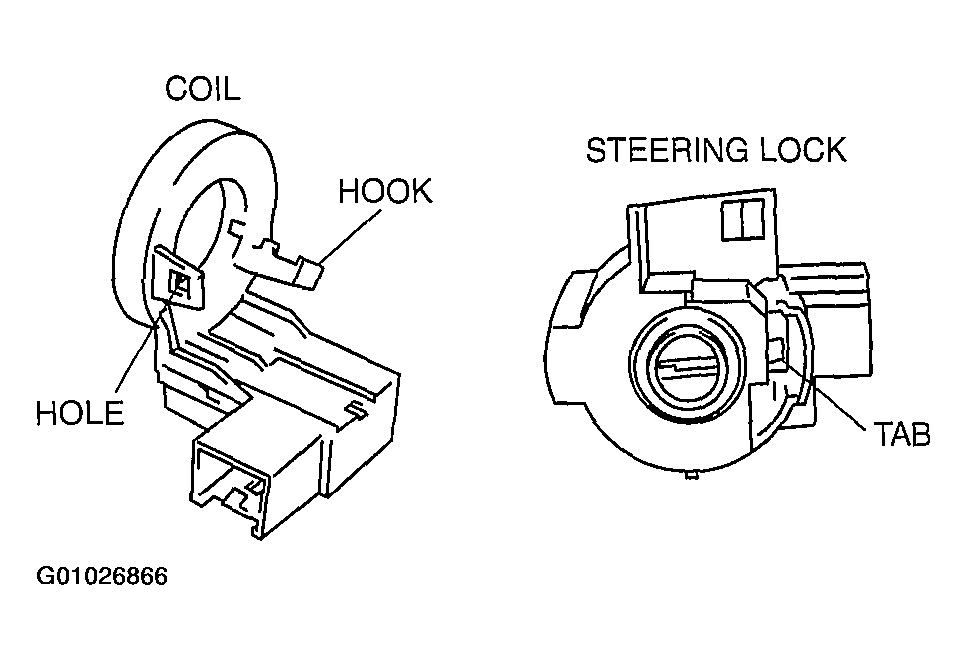

Fig 1: Installing Hole Of Coil To Tab Of Steering Lock
G01026866Courtesy of MAZDA MOTORS CORP.
