Door Lock Control Module Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the glove compartment.
  3. Remove the bolt.
  4. While inclining the door lock control module along the body panel in the direction indicated by the arrow, disengage the bracket tab from the hole in the body panel.
  5. Disconnect the door lock control module connector.
  6. Remove the door lock control module.

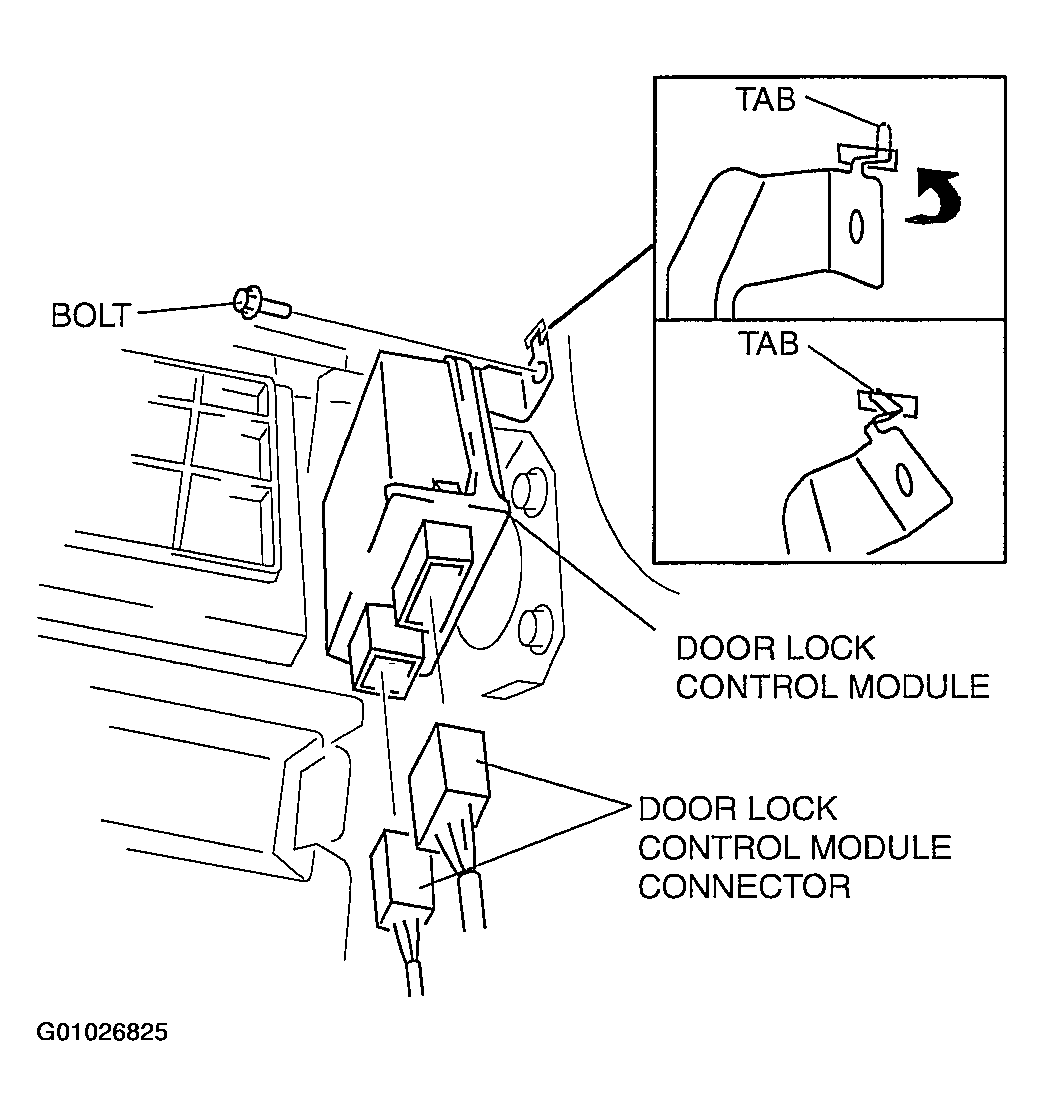

    Fig 1: Removing Door Lock Control Module
    G01026825Courtesy of MAZDA MOTORS CORP.
  7. Remove the screw, then remove the bracket.
    NOTE:
    • The screw which fixes the door lock control module and bracket is for a body ground connection. Be sure to secure the screw when installing.
  8. Install in the reverse order of removal.

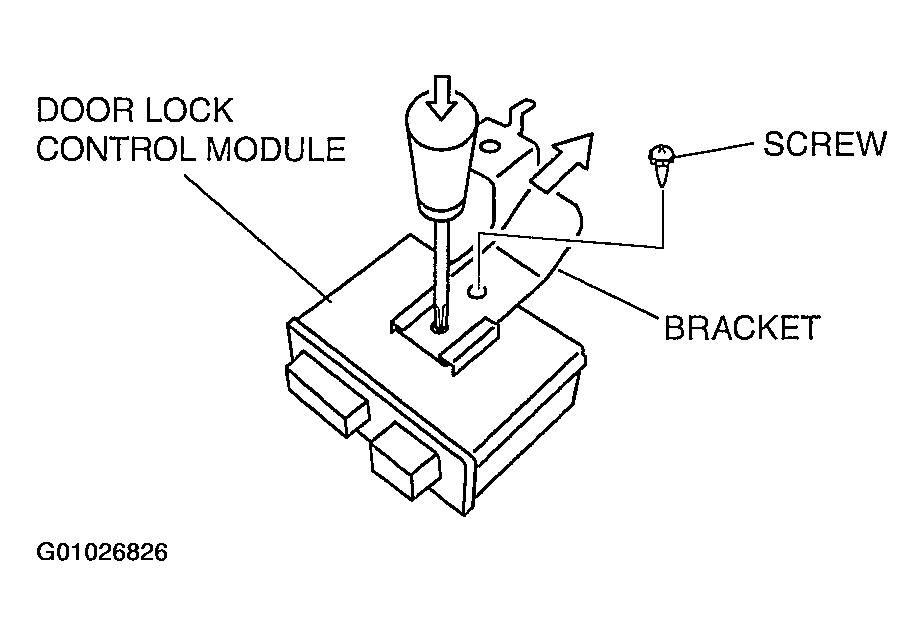

Fig 2: Removing Door Lock Control Module Bracket
G01026826Courtesy of MAZDA MOTORS CORP.
