Key Addition

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Cut new transponder-equipped key(s).
  2. Using key 1, turn ignition switch to ON position.
    1. Observe illumination of security light in instrument cluster.
    2. After the security light turns off (after approx. 3 seconds from when ignition switch is turned to the ON position), turn key 1 to the LOCK position within approx. 4 seconds  and remove it from the steering lock.

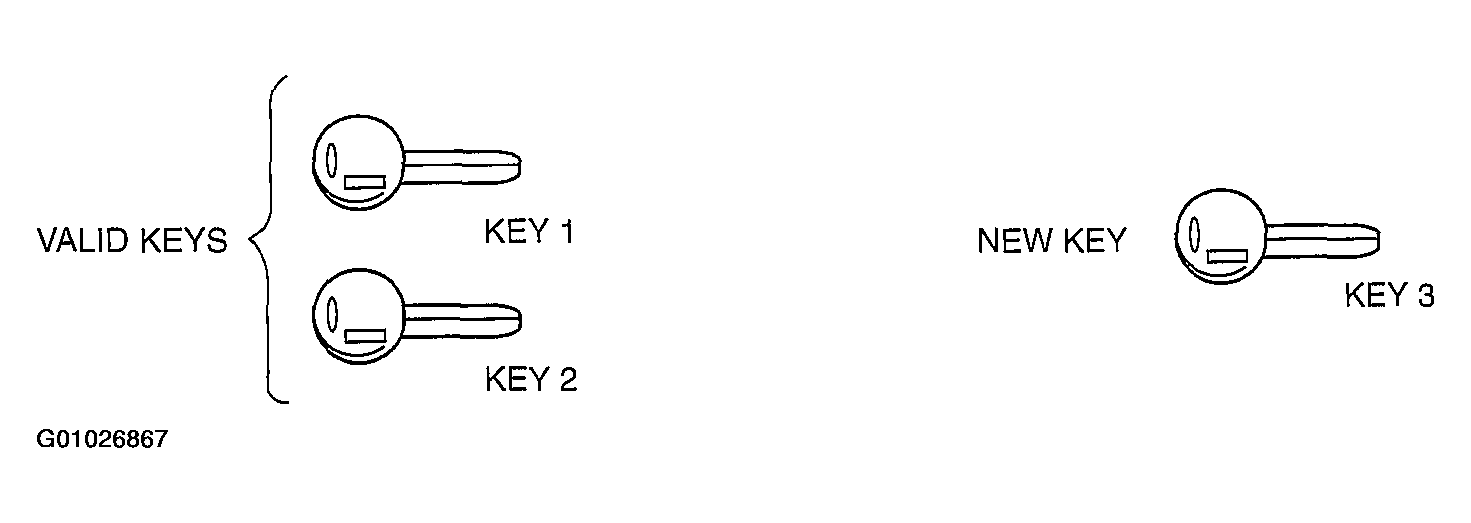

    Fig 1: Identifying Added Key (When Customer Has Two Or More Valid Keys)
    G01026867Courtesy of MAZDA MOTORS CORP.
  3. Repeat Step  2 with key 2.
  4. Repeat Step  2 with key 3.
  5. If there are 4-8 keys (new keys), repeat Step  2.
  6. Verify that the engine starts using the programmed key.
