Theft-Deterrent Control Module Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the center panel module.
Remove in the order indicated in Fig 1.

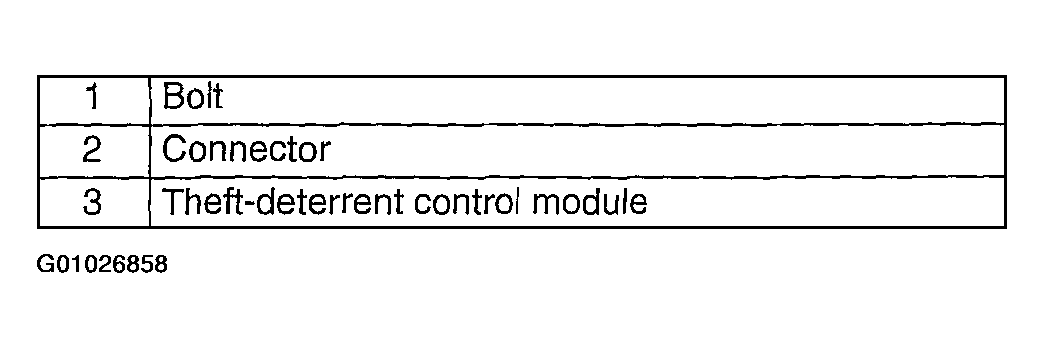

Fig 1: Removal Order Of Theft-Deterrent Control Module
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

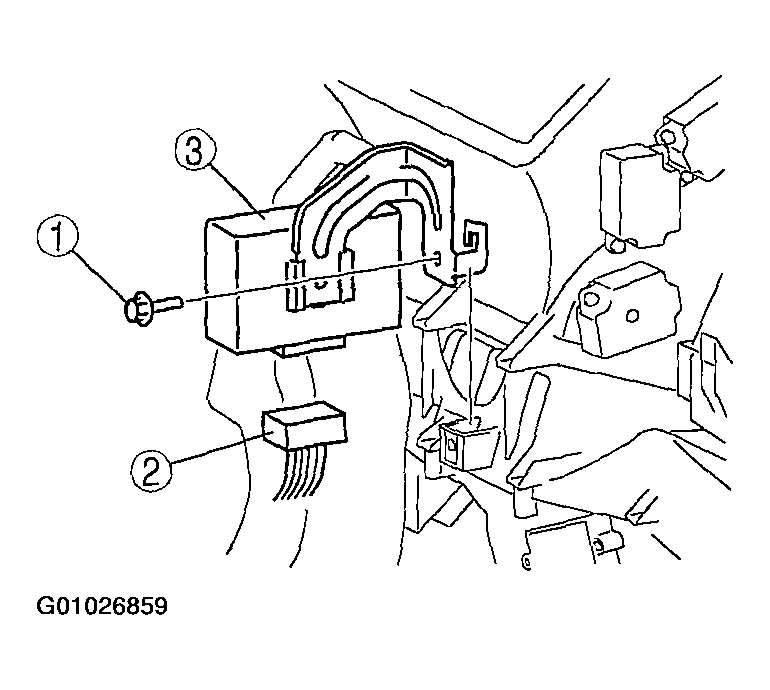

Fig 2: Removing/Installing Theft-Deterrent Control Module

Courtesy of MAZDA MOTORS CORP.
