Transmitter Battery Replacement

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a small screwdriver into the slot and gently pry open the transmitter.

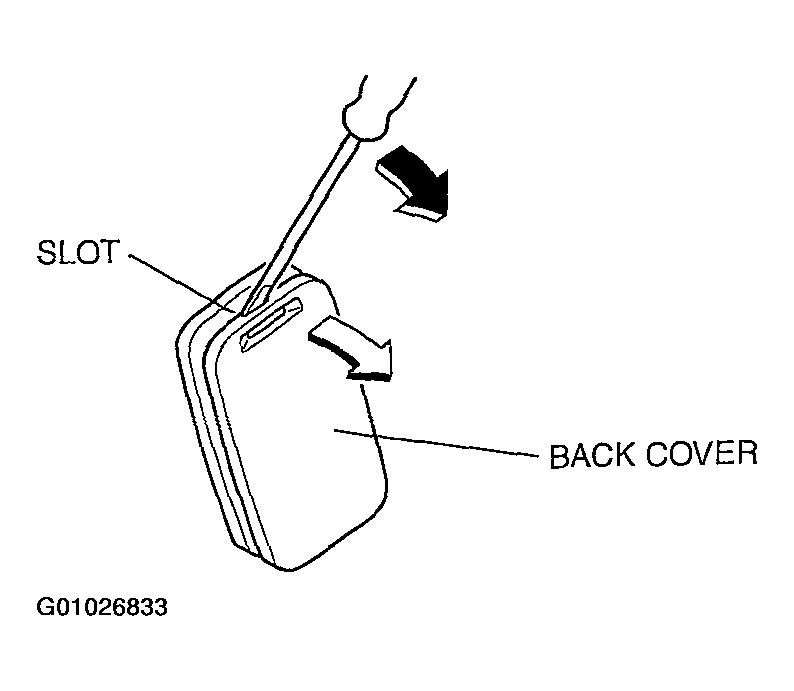

    Fig 1: Prying Transmitter Cover
    G01026833Courtesy of MAZDA MOTORS CORP.
  2. Press the portion of the battery indicated by A and remove the battery.
  3. Install a new battery (CR2025) into the front portion of the holder with the positive pole (+) facing up. Press on the B portion of the battery to set the battery.

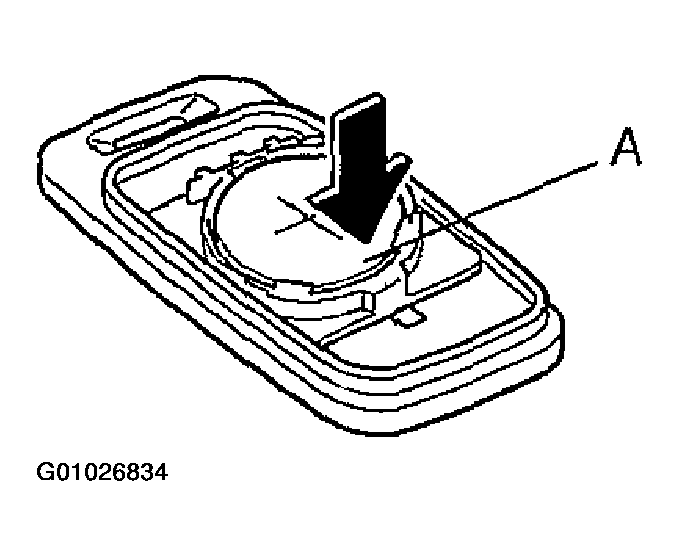

    Fig 2: Installing New Battery Into Front Portion Of Holder
    G01026834Courtesy of MAZDA MOTORS CORP.
  4. Align the front and back covers and snap the transmitter shut.

    Battery specification

    Lithium CR2025 x 1

    NOTE:
    • The batteries will last about 2 years  when used 10 times  a day.

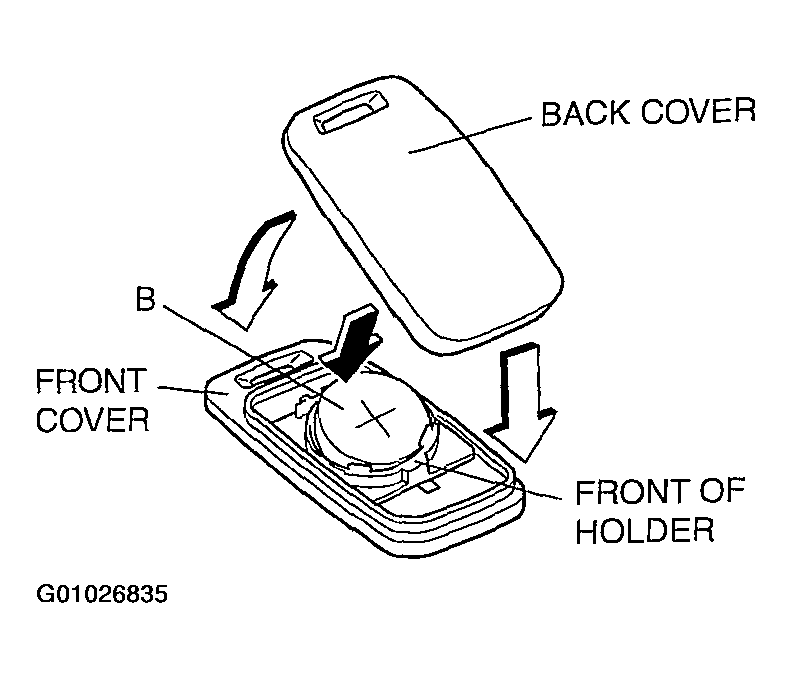

Fig 3: Aligning Front & Back Transmitter Covers
G01026835Courtesy of MAZDA MOTORS CORP.
