Easy Closure Control Module Inspection

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the easy closure control module.
Inspect for continuity between the latch position switch terminals using an ohmmeter.
- If not as specified, replace the easy closure control module.

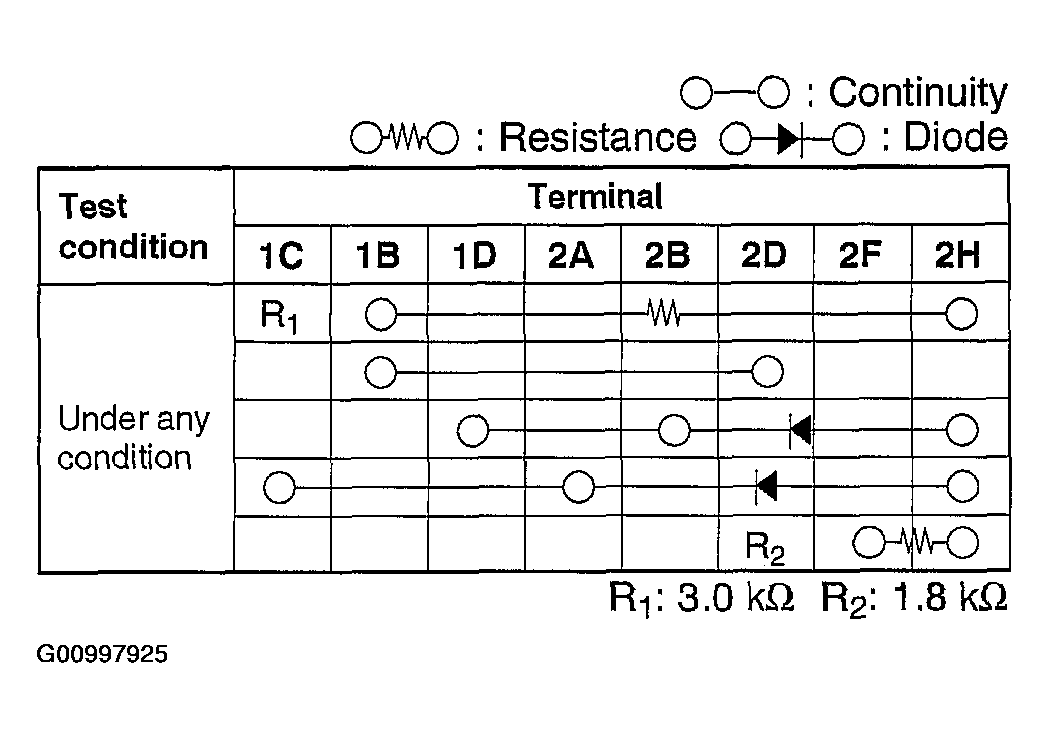

  Fig 1: Easy Closure Control Module Continuity Table
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Identifying Easy Closure Control Module Terminals Connection
  Courtesy of MAZDA MOTORS CORP.
