Outer Handle Assembly Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the door key cylinder harness of outer handle as shown.

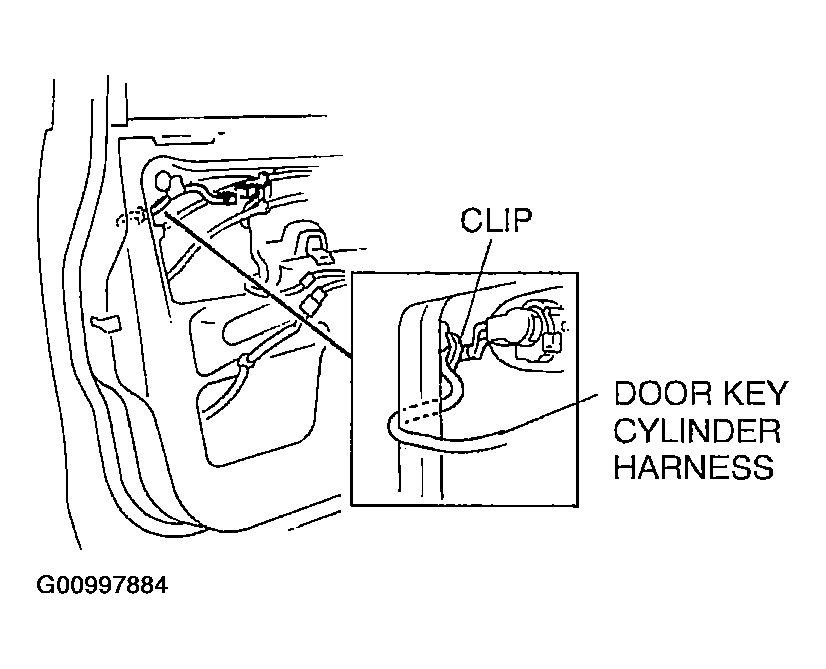

    Fig 1: Connecting Door Key Cylinder Harness Of Outer Handle
    G00997884Courtesy of MAZDA MOTORS CORP.
