Liftgate Disassembly/Assembly

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
Remove the rear finisher.
Disassemble in the order indicated in the illustration.
Assemble in the reverse order of disassembly.

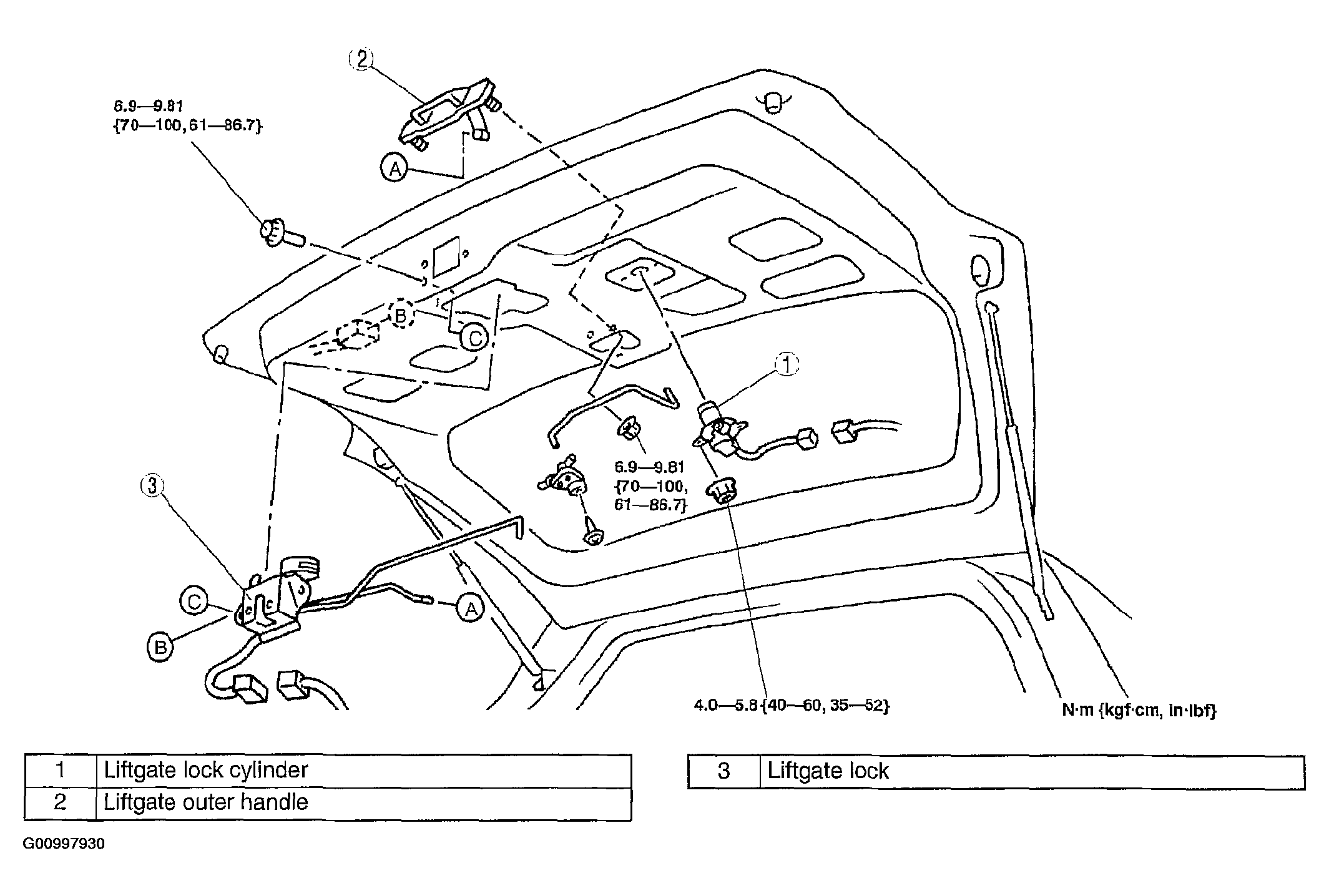

Fig 1: Disassembling/Assembling Liftgate
Courtesy of MAZDA MOTORS CORP.
