Power Sliding Door (PSD) Drive Module Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear side trim.
Remove the woofer. (LH only)
Remove the rear A/C unit. (RH only) (See REAR A/C UNIT REMOVAL/INSTALLATION .)
Remove in the order indicated in the illustration.

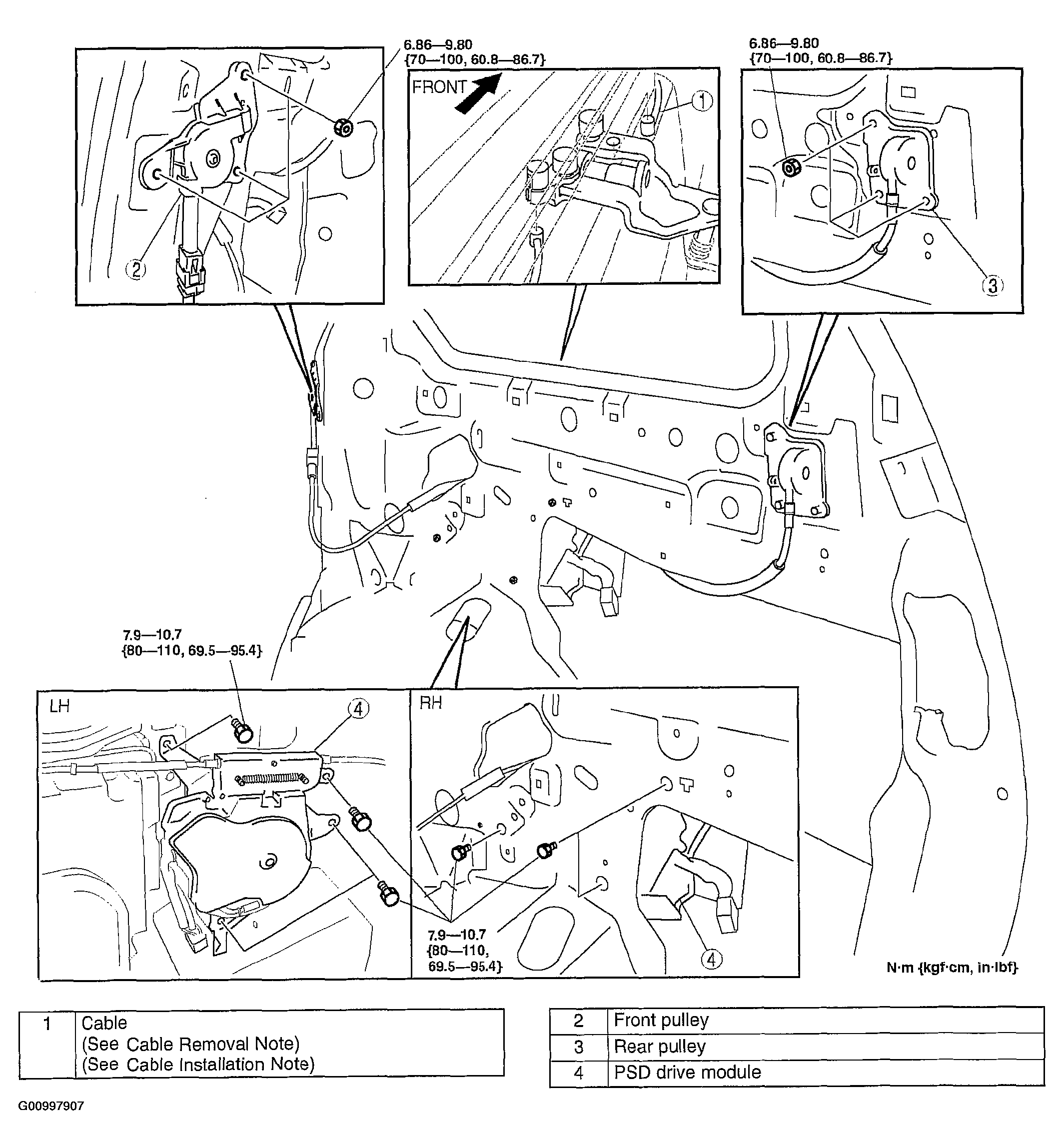

Fig 1: Removing/Installing Power Sliding Door Drive Module
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal
