Airflow Mode Link Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Disconnect the airflow mode wire from the airflow mode link.
Remove in the order indicated in the illustration.

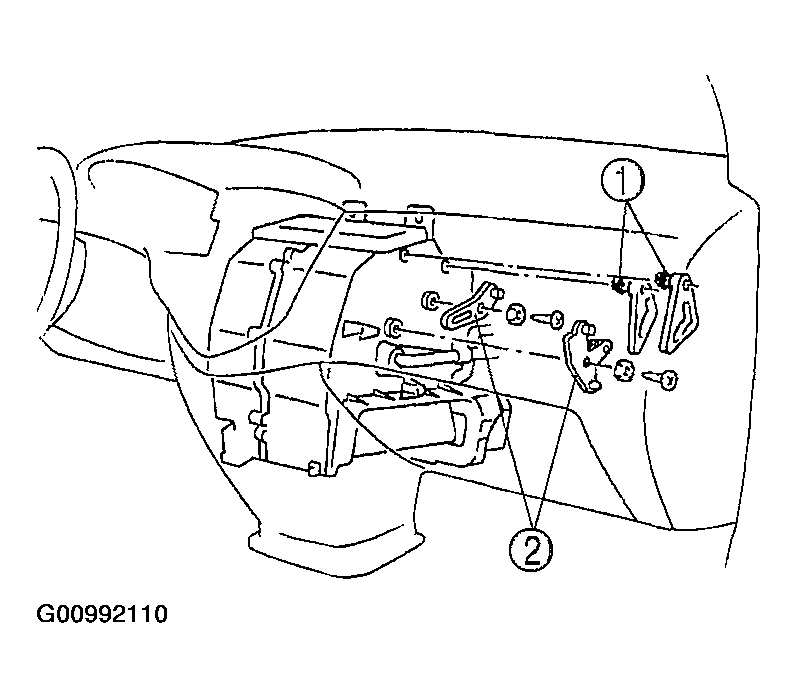

Fig 1: Removing Order Of Airflow Mode Link
Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing/Installing Airflow Mode Link
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
NOTE:
- Apply silicone grease or all-purpose grease to each link.
Adjust the airflow mode wire. (See FRONT CLIMATE CONTROL UNIT WIRE ADJUSTMENT .)
