Blower Unit Disassembly/Assembly

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the illustration.

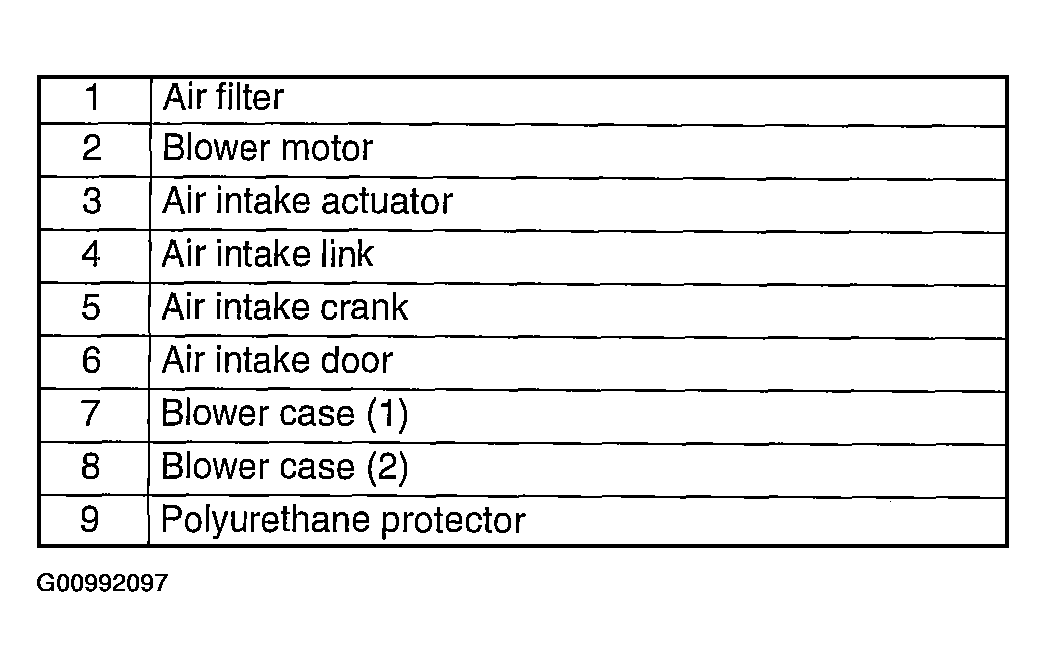

Fig 1: Order Indicating Disassembly Of Blower Unit
Courtesy of MAZDA MOTORS CORP.

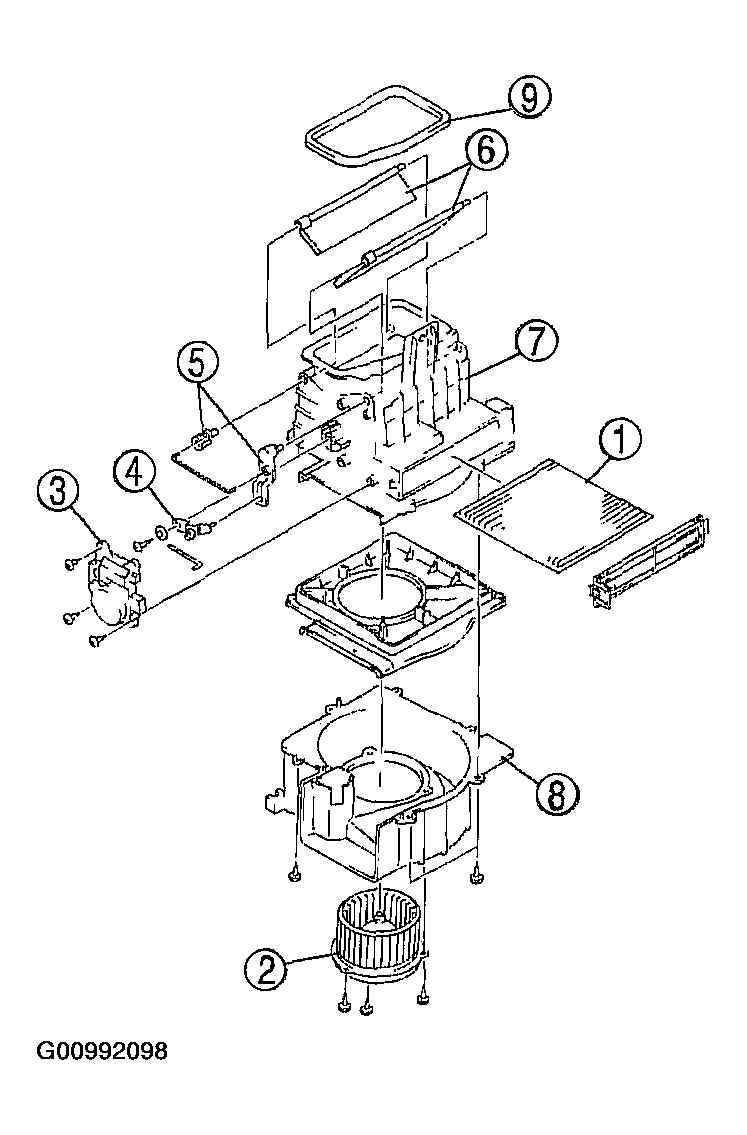

Fig 2: Disassembling/Assembling Blower Unit
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
