Front A/C Unit Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Discharge the refrigerant. (See REFRIGERANT RECOVERY .) (See REFRIGERANT CHARGING .)
CAUTION:
- If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.
Remove the dashboard. (See DASHBOARD REMOVAL/INSTALLATION .)
Remove in the order indicated in the illustration.
ENGINE COMPARTMENT

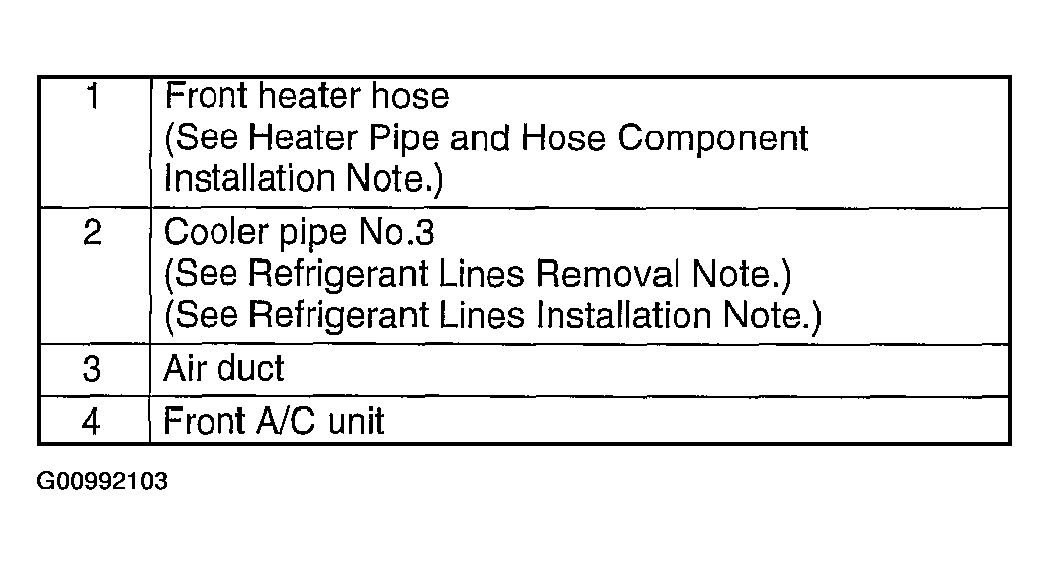

Fig 1: Order Indicating Remove Of Parts
Courtesy of MAZDA MOTORS CORP.

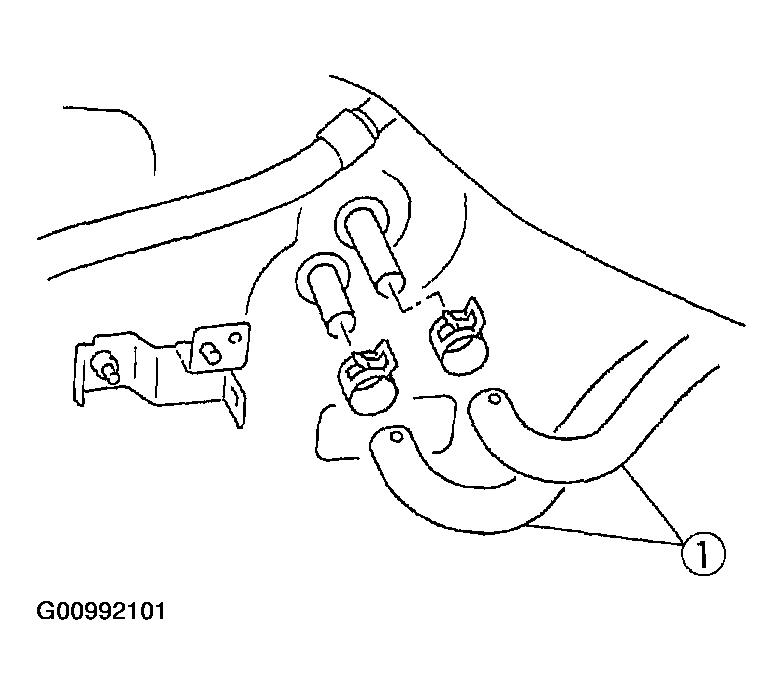

Fig 2: Removing Front Heater Hose
Courtesy of MAZDA MOTORS CORP.

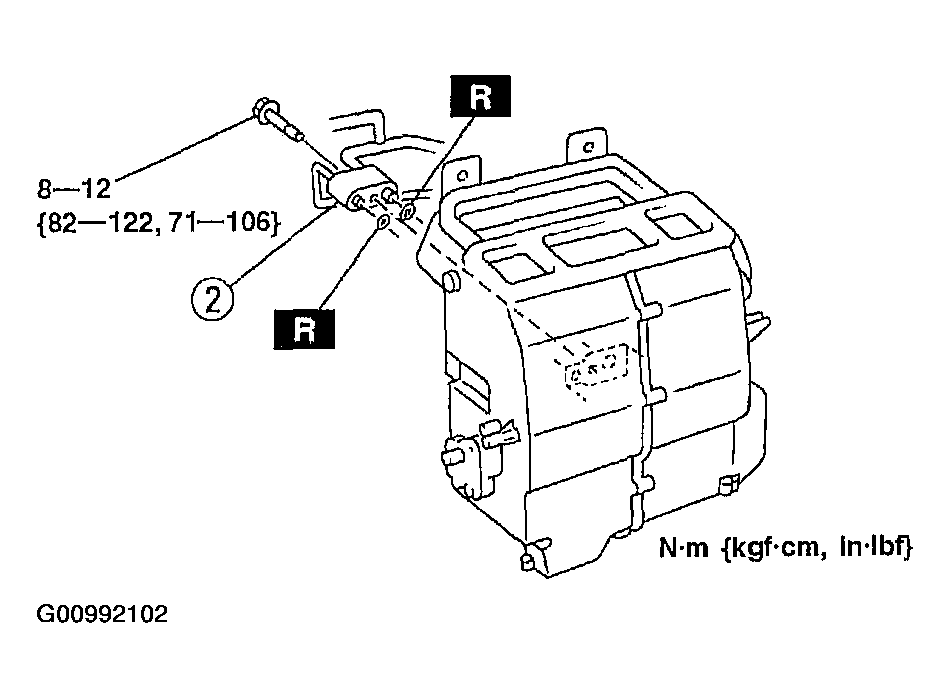

Fig 3: Removing Cooler Pipe No. 3
Courtesy of MAZDA MOTORS CORP.

PASSENGER COMPARTMENT (IN DASHBOARD)

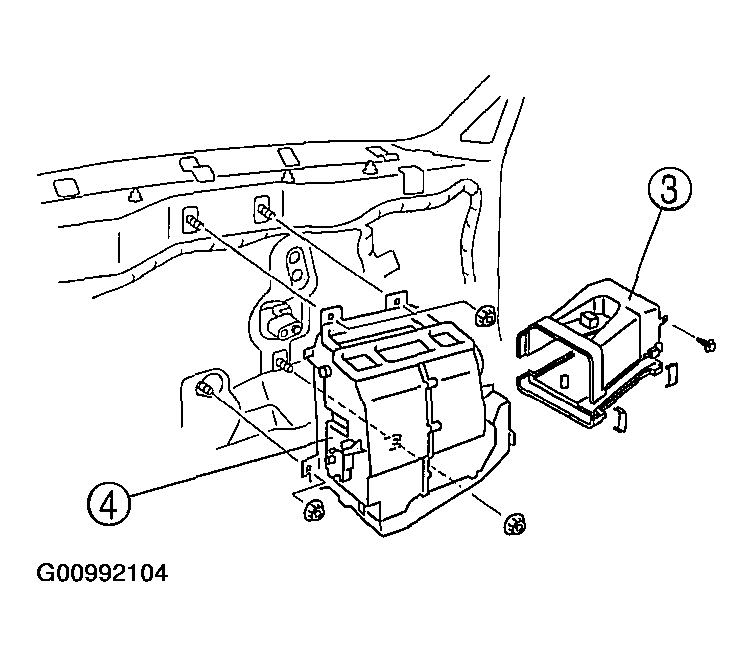

Fig 4: Removing Air Duct & Front A/C Unit
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
