Heater Pipe And Hose Component Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Remove in the order indicated in the illustration.

Fig 1: Removing Order Of Heater Pipe And Hose
Courtesy of MAZDA MOTORS CORP.

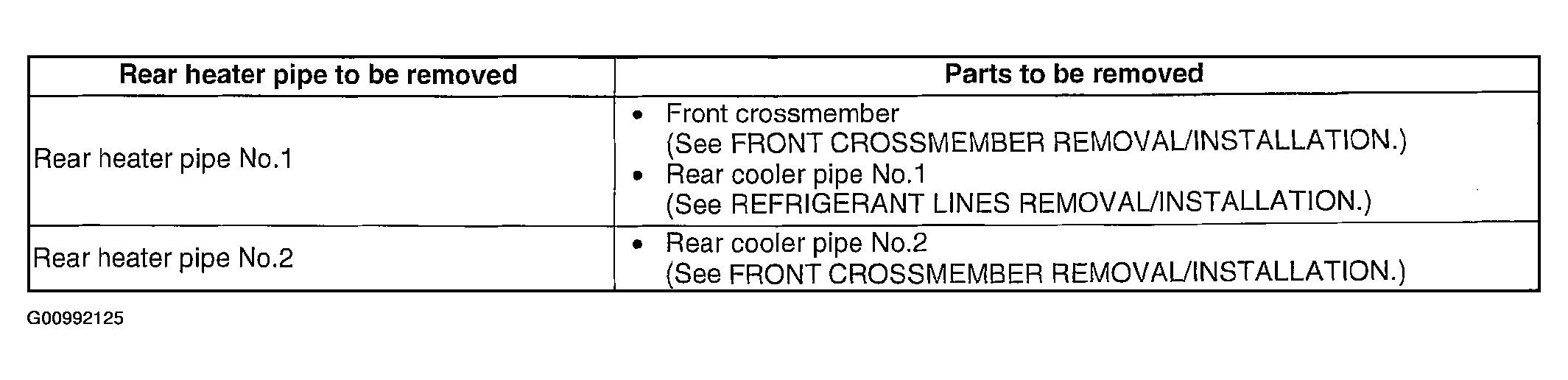

Remove the following parts, depending on rear heater pipe to be removed.
Install in the reverse order of removal.
Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
FRONT

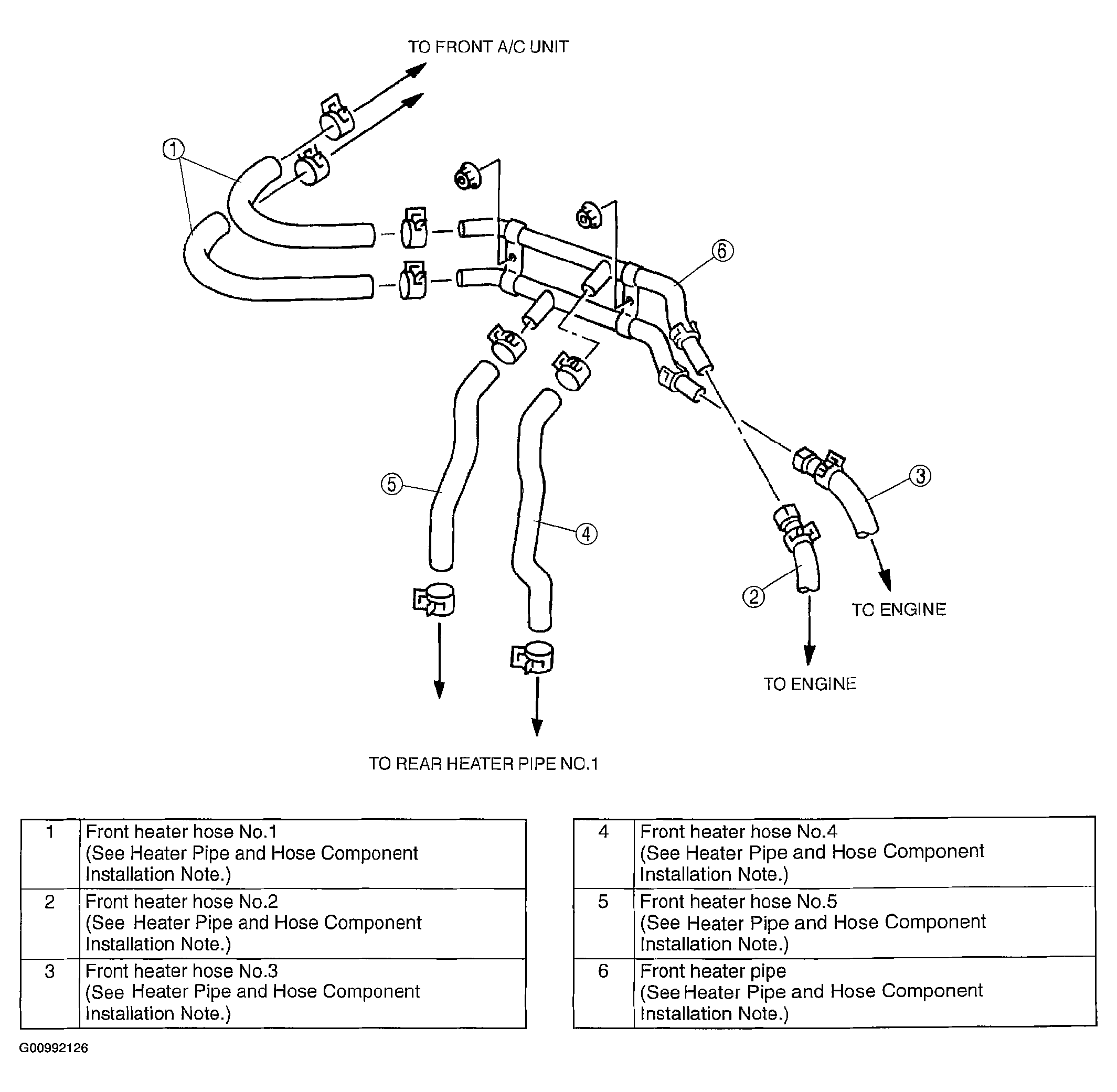

Fig 2: Removing/Installing Heater Pipe And Hose - Front
Courtesy of MAZDA MOTORS CORP.

REAR

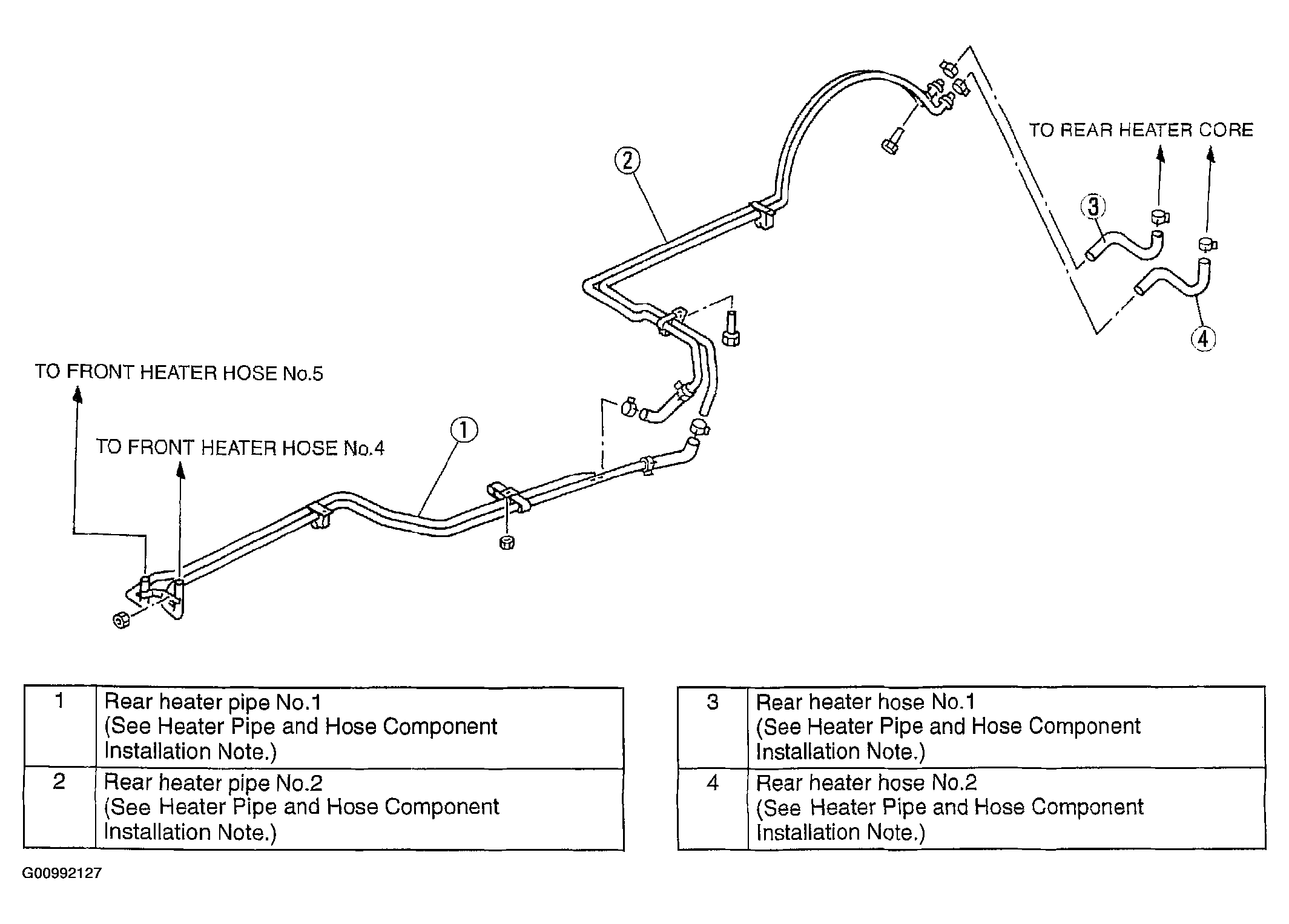

Fig 3: Removing/Installing Heater Pipe And Hose - Rear
Courtesy of MAZDA MOTORS CORP.
