Wire Disassembly Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble the wires in the order shown.

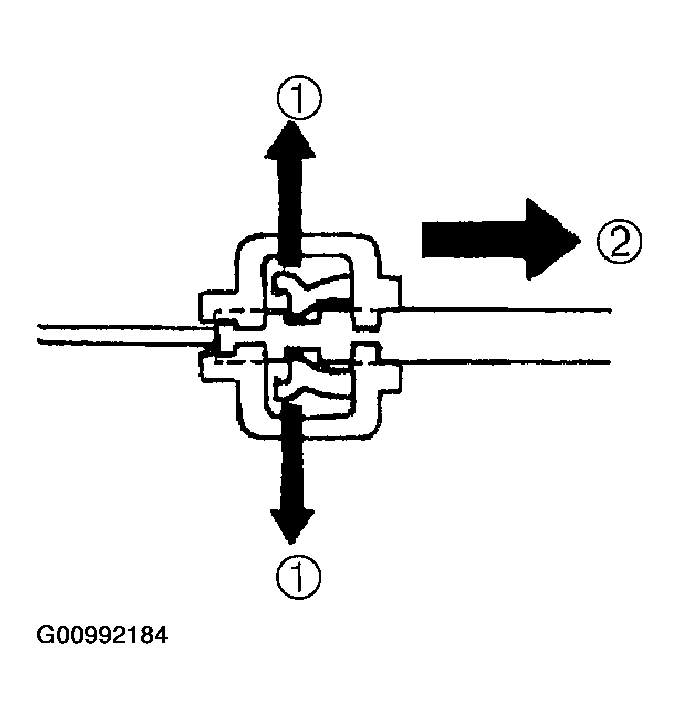

    Fig 1: Disassembling Wires In Order
    G00992184Courtesy of MAZDA MOTORS CORP.
