Rear Climate Control Unit Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear cup holder (RH).
Remove in the order indicator in the illustration.

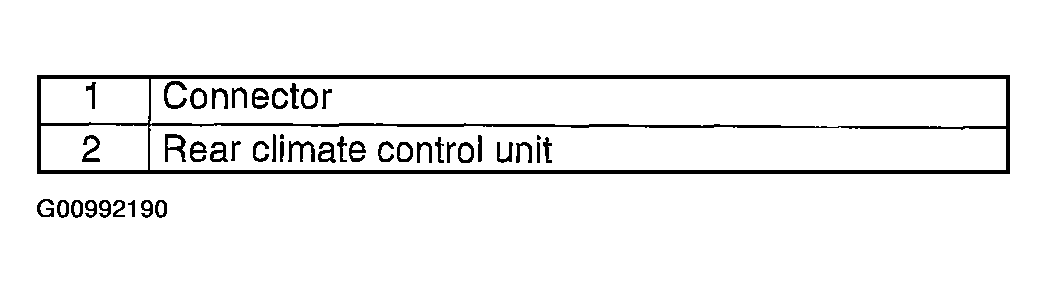

Fig 1: Removal Order Of Rear Climate Control Unit
Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing/Installing Of Rear Climate Control Unit
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
