Rear Main Fan Switch Disassembly/Assembly

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear main fan switch. (See REAR MAIN FAN SWITCH REMOVAL/INSTALLATION .)
Disassemble in the order indicated in the illustration.

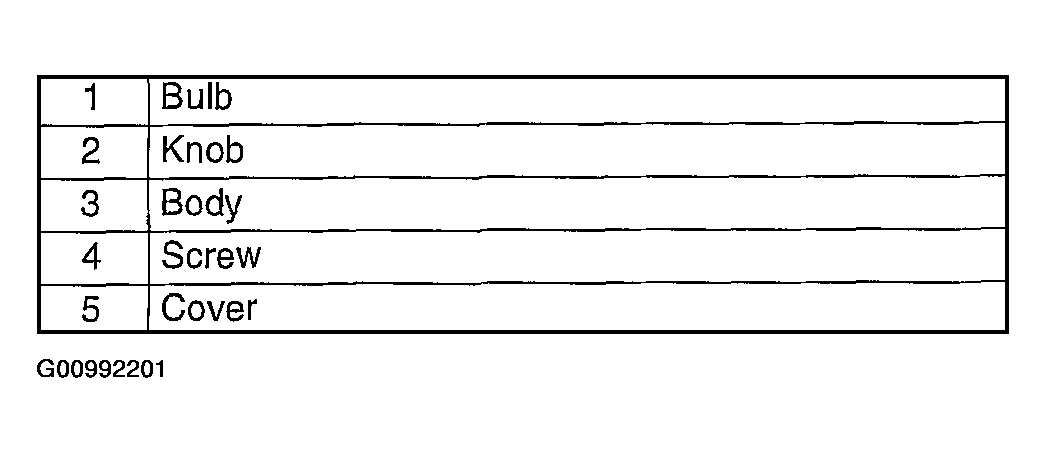

Fig 1: Disassembling Order Of Rear Main Fan Switch
Courtesy of MAZDA MOTORS CORP.

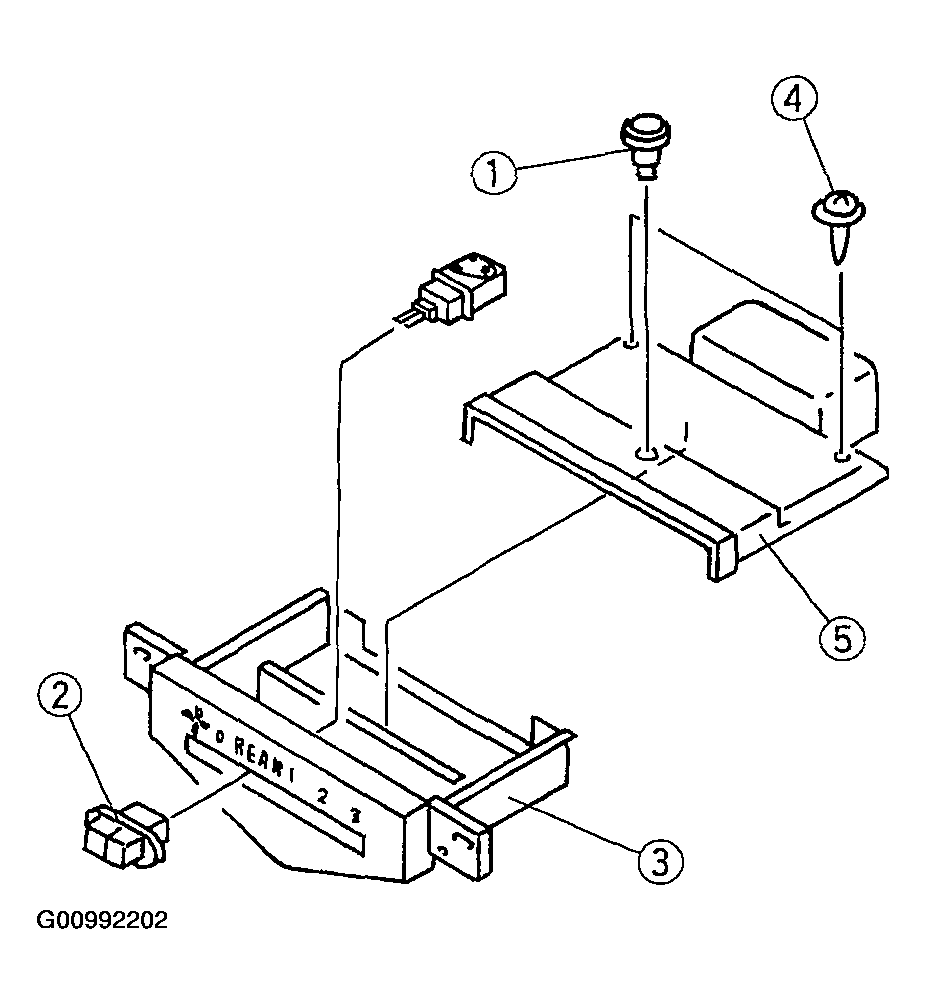

Fig 2: Disassembling/Assembling Rear Main Fan Switch
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
