THERMOSENSOR Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove in the order indicated in the illustration.

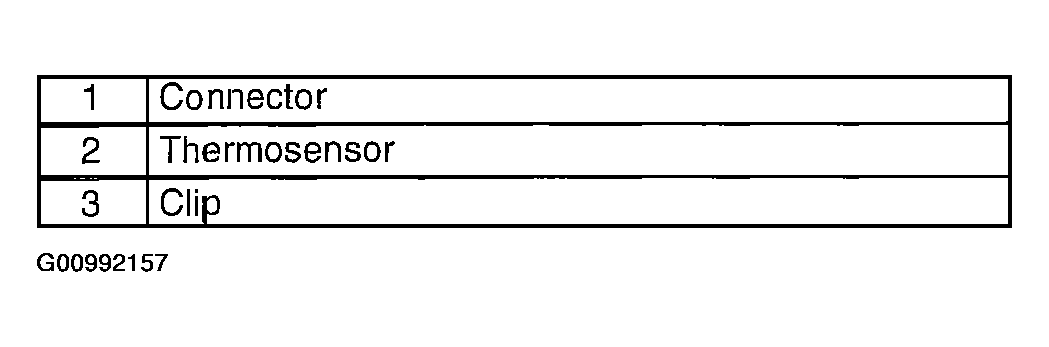

Fig 1: Removing Order Of Thermosensor
Courtesy of MAZDA MOTORS CORP.

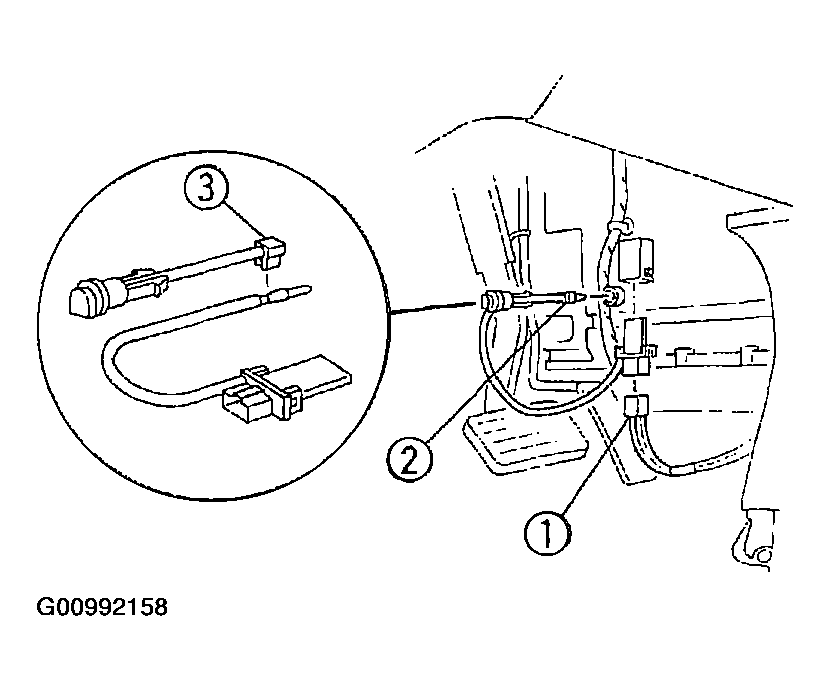

Fig 2: Removing/Installing Thermosensor
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
