Lower Module Removal/Installation: Notes
WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the audio unit. (See AUDIO UNIT REMOVAL/INSTALLATION .)

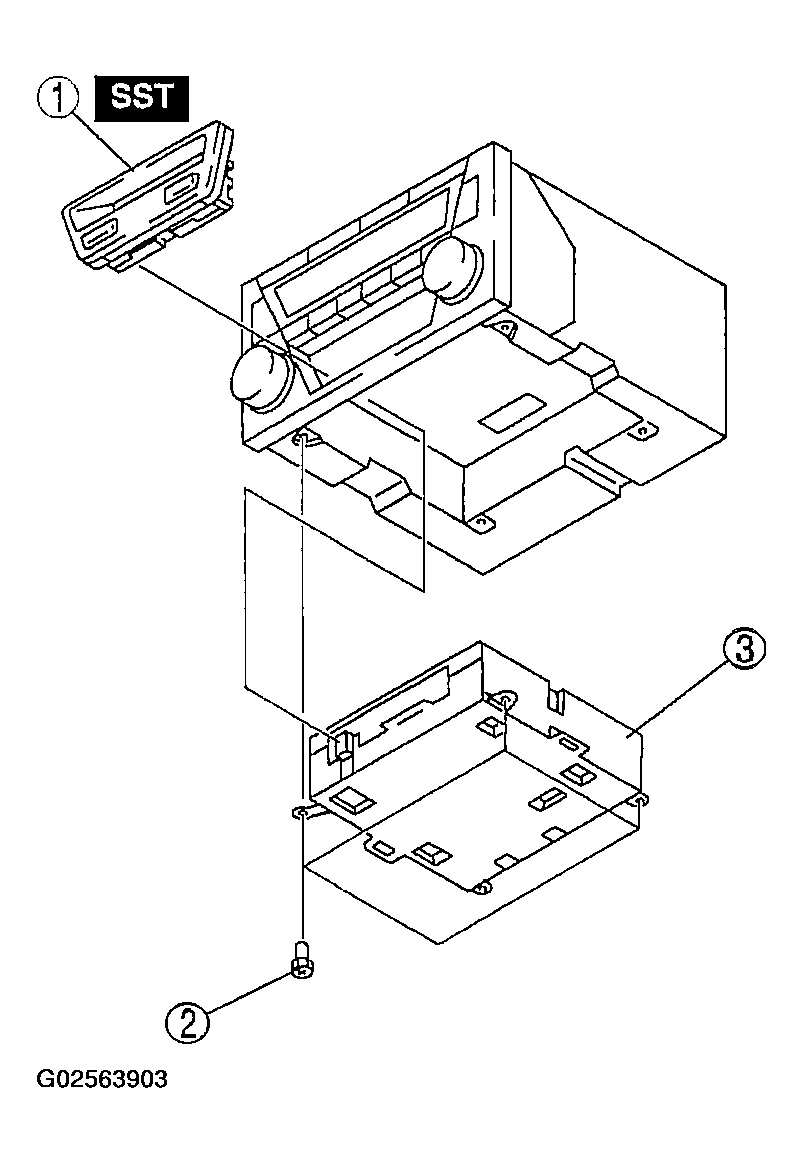

- Remove in the order indicated in the table/figure.REMOVING/INSTALLING LOWER MODULE
Component/Step No. Component Description 1 Cover (See COVER REMOVAL NOTE ) 2 Screw (See SCREW INSTALLATION NOTE ) 3 Lower module - Install in the reverse order of removal.
