Radiator Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Drain the engine coolant. See ENGINE COOLANT REPLACEMENT .
Remove the fresh-air duct.
Remove the oil pipe. (FS: ATX)
Remove in the order indicated in the table.
Install in the reverse order of removal.

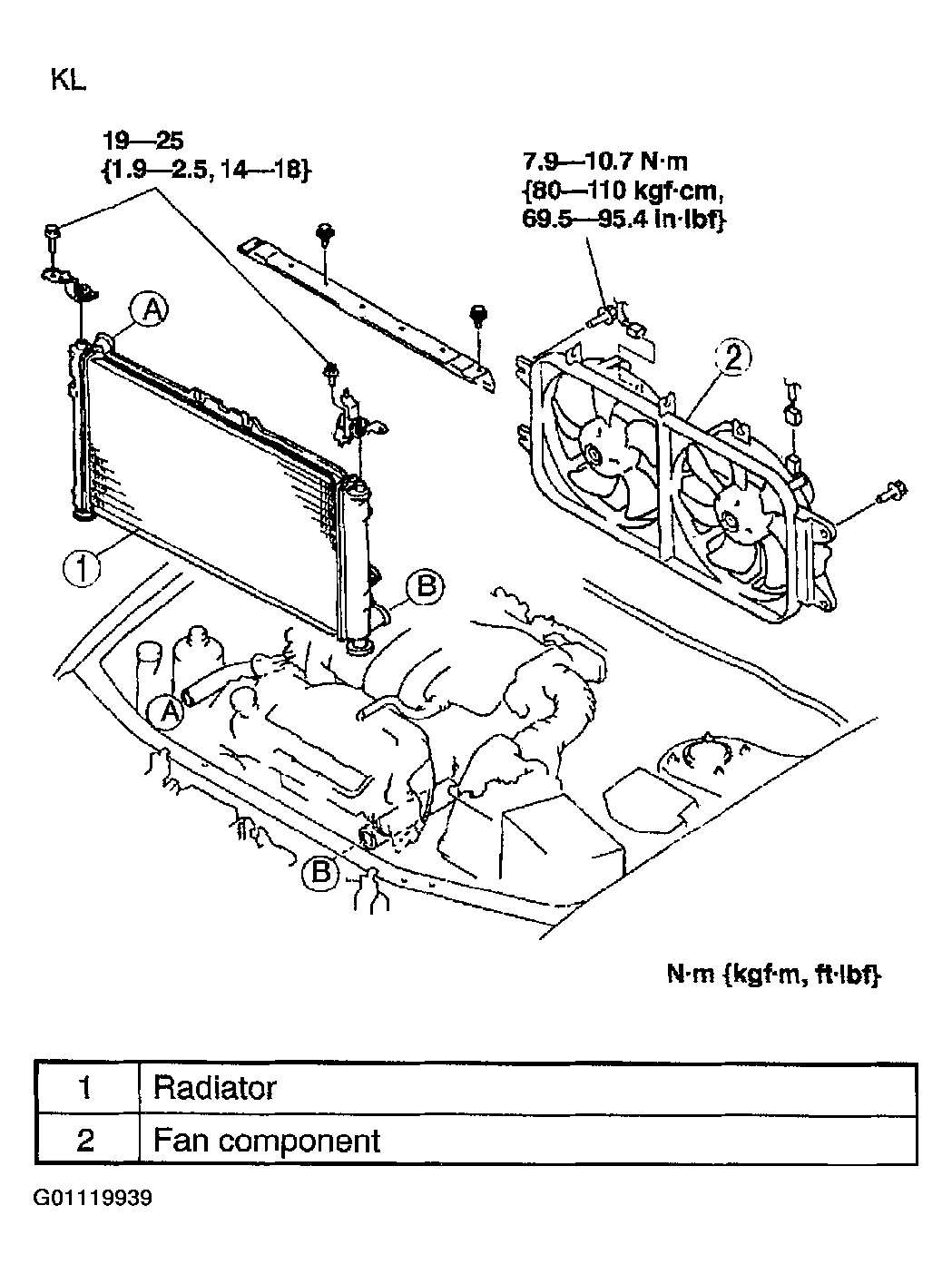

Fig 1: Identifying Radiator Removal/Installation (2.0L)
Courtesy of MAZDA MOTORS CORP.

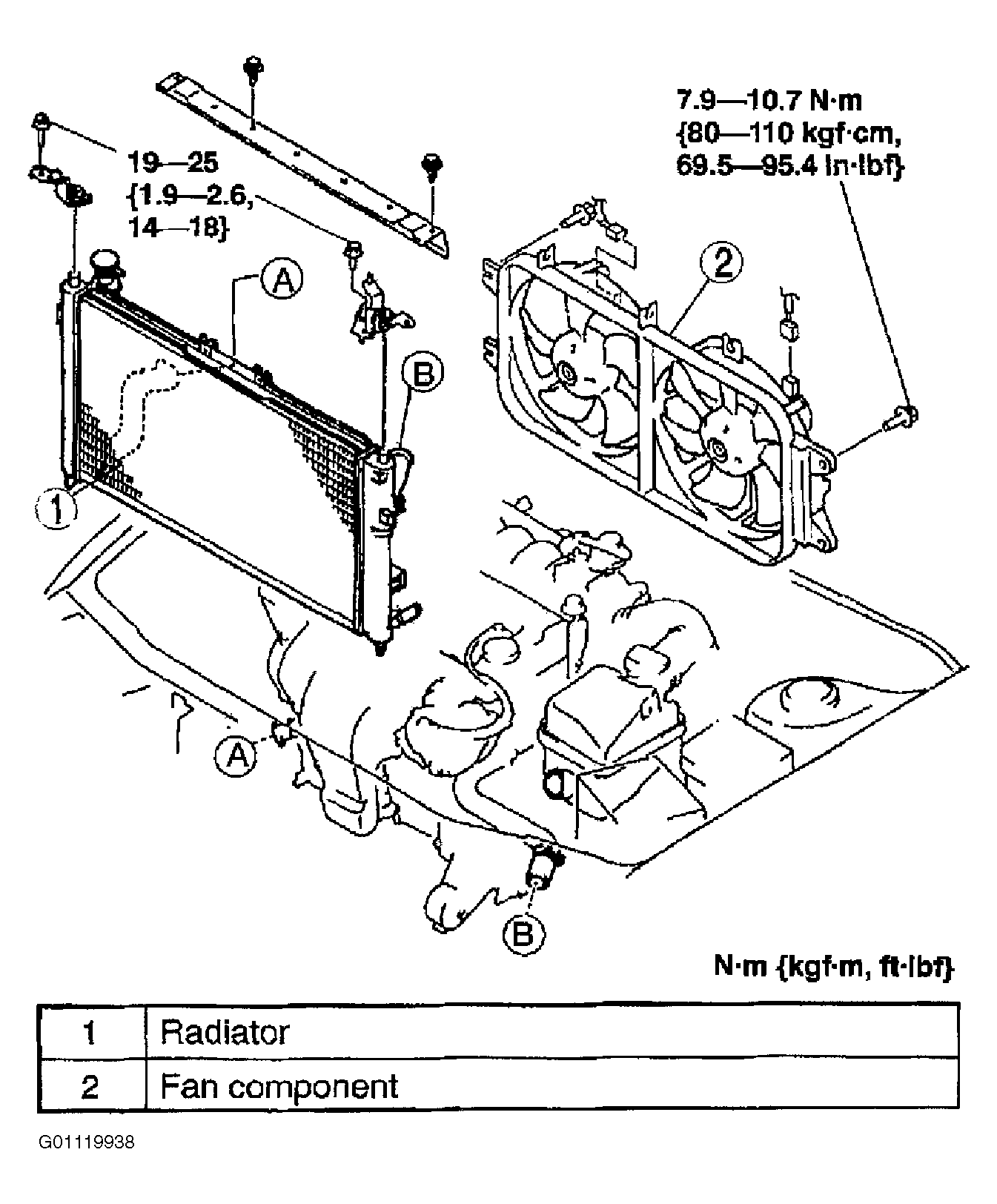

Fig 2: Identifying Radiator Removal/Installation (2.5L)
Courtesy of MAZDA MOTORS CORP.
